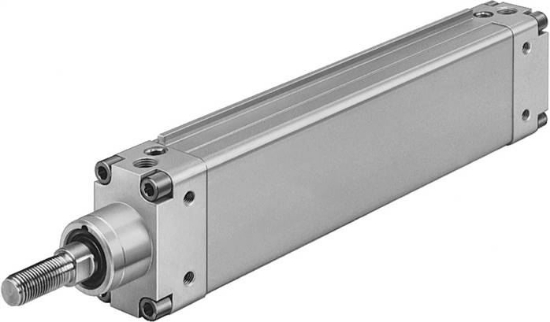

Stroke [mm]
|
200 |
|
Piston diameter
|
63 mm |
|
Max. twist angle of the piston rod ± [deg]
|
0,67 |
|
Dampening
|
PPV: Pneumatic dampening both sides adjustable |
|
installation position
|
arbitrary |
|
Principle of operation
|
double acting |
|
Construction set up
|
Piston |
|
Position detection
|
For proximity switch |
|
Anti-twist lock / guide
|
Oval piston |
|
Operating pressure [bar]
|
0.6 to 10 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
-20 to 80 |
|
Dampening length [mm]
|
23 |
|
Max. torque of anti-rotation safety [Nm]
|
2,0 |
|
Theoretical force at 6 bar, Return flow [N]
|
1.682,0 |
|
Theoretical force at 6 bar, flow [N]
|
1.870 |
|
Weight supplement per 10 mm stroke [g]
|
80 |
|
Base weight at 0 mm stroke [g]
|
1.690 |
|
Fastening type
|
With female thread |
|
Pneumatic connection
|
G3/8 |
|
Material information
|
RoHs compliant |
|
Cover material
|
Aluminium |
|
Seals material
|
TPE-U(PU) |
|
Housing material
|
Aluminium |
|
Piston rod material
|
High-alloyed steel |
|
Weight
|
3,4 kg / Pcs |
|
GTIN
|
4052568112448 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EZH/DZF/DZH (english) , Data sheet |
