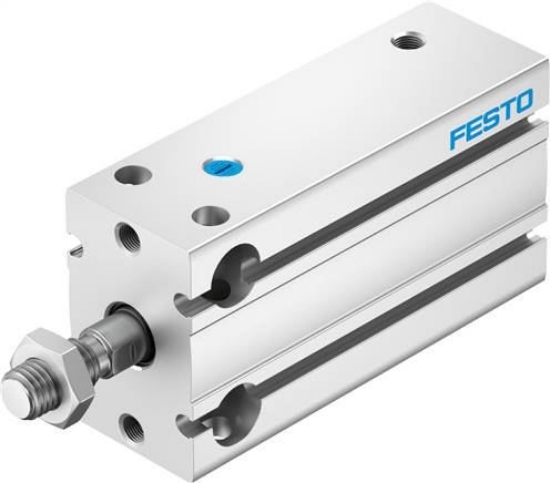

Stroke [mm]
|
10 |
|
Piston diameter
|
20 mm |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Principle of operation
|
Pressing |
|
Construction set up
|
Piston |
|
Position detection
|
For proximity switch |
|
Variants
|
One-sided piston rod |
|
Operating pressure [bar]
|
1.5 to 8 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 80 |
|
Theoretical force at 6 bar [N]
|
160 |
|
Theoretical force at 6 bar, flow [N]
|
160 |
|
Moving mass at 0 mm stroke [g]
|
34,5 |
|
Weight supplement per 10 mm stroke [g]
|
22,0 |
|
Base weight at 0 mm stroke [g]
|
117,0 |
|
Supplement moved mass per 10 mm stroke [g]
|
4,0 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
M5 |
|
Material information
|
RoHs compliant |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
TPE-U(PU) |
|
Housing material
|
Aluminium wrought alloy, anodised |
|
Piston rod material
|
High-alloyed stainless steels |
|
Weight
|
145 g / Pcs |
|
GTIN
|
4052568293390 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DPDM (english) , Data sheet |
