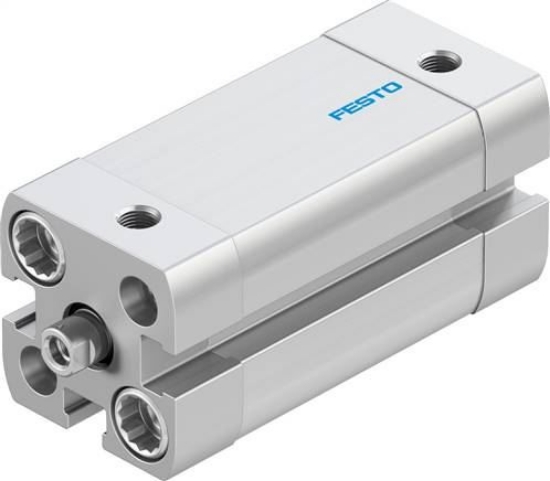

Stroke [mm]
|
25 |
Piston diameter
|
12 mm |
Piston rod thread
|
M3 |
Dampening
|
P: Elastic silencer rings / plates double-sided |
installation position
|
arbitrary |
Complies to standard
|
ISO 21287 |
Piston rod end
|
Female thread |
Position detection
|
For proximity switch |
Variants
|
One-sided piston rod |
Operating pressure [bar]
|
1 to 10 |
Principle of operation
|
double acting |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
ambient temperature [°C]
|
-20 to 80 |
Impact energy at the end positions [J]
|
0,07 |
Theoretical force at 6 bar, Return flow [N]
|
51 |
Theoretical force at 6 bar, flow [N]
|
68 |
Moving mass at 0 mm stroke [g]
|
9 |
Weight supplement per 10 mm stroke [g]
|
12 |
Base weight at 0 mm stroke [g]
|
77 |
Supplement moved mass per 10 mm stroke [g]
|
2 |
Fastening type
|
With throughway bores |
Pneumatic connection
|
M5 |
Material information
|
RoHs compliant |
Cover material
|
aluminium |
Seals material
|
TPE-U(PUR) |
Piston rod material
|
High-alloyed steel |
Cylinder tube material
|
Aluminium wrought alloy |
Weight
|
90 g / Pcs |
GTIN
|
4052568087234 |
Customs duty number
|
84123100 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: ADN/AEN (english) , Data sheet |
