Construction set up
|

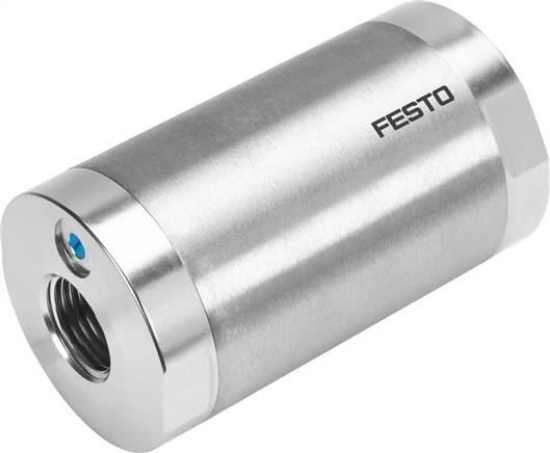

Pinch valve pneumatically actuated |
|
Actuation type
|
pneumatic |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
Clamp acc. to DIN 32676 row A |
|
Nominal width DN
|
15 |
|
Valve function
|
2/2 closed monostable |
|
Flow direction
|
Reversible |
|
Medium pressure [bar]
|
0 to 6 |
|
Operating pressure [bar]
|
3.5 to 6 |
|
Nominal pressure fitting
|
10 |
|
Burst pressure [bar]
|
16 |
|
Reset mode
|
Mechanical spring |
|
Control type
|
Remote controlled |
|
Support air control connection 12
|
M5 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:1] |
|
medium
|
Water |
|
Max. viscosity [mm²/s]
|
4.000 |
|
Medium temperature [°C]
|
-5 to 100 |
|
ambient temperature [°C]
|
-5 to 60 |
|
Bearing temperature [°C]
|
6 to 8 |
|
Flow Kv [Kubikmeter]
|
5,0 |
|
Shifting time on [ms]
|
150 |
|
Shifting time off [ms]
|
250 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
Aluminium wrought alloy |
|
Housing cover material
|
High-alloyed stainless steels |
|
Material number housing cover
|
1.4435 |
|
Seals material
|
FPM |
|
Blocking element material
|
EPDM |
|
Product weight [g]
|
607,0 |
|
Food compatibility
|
See expanded material information |
|
Clamps material
|
PA6 |
|
Weight
|
607,0 g / Pcs |
|
Customs duty number
|
84818079 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VZQA (english) , Data sheet |
