Construction set up
|

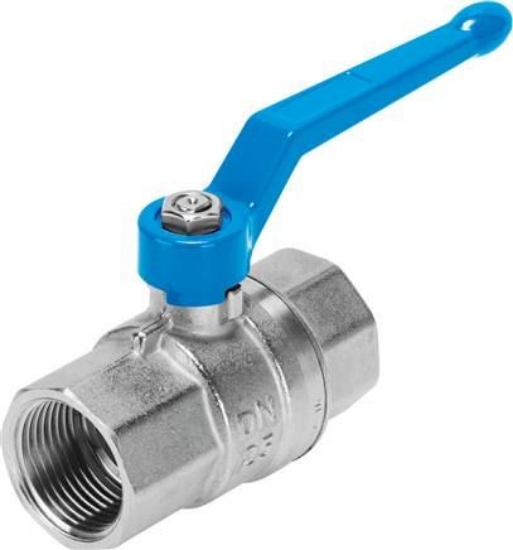

2-way ball valve |
|
Actuation type
|
Mechanical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
Rp1 1/4 |
|
Switching position display
|
Carriage direction = flow direction |
|
Inside diameter [mm]
|
32,0 |
|
Nominal width DN
|
32 |
|
Valve function
|
2/2 |
|
Flow direction
|
Reversible |
|
Nominal pressure fitting
|
40 |
|
Based on standard
|
EN 10226-1 |
|
medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
-15 to 120 |
|
Flow Kv [Kubikmeter]
|
84,0 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
brass |
|
Material number housing
|
CW617N |
|
Seals material
|
NBR |
|
Ball material
|
brass |
|
Material number ball
|
CW617N |
|
Shaft material
|
Brass |
|
Material number shaft
|
CW617N |
|
Product weight [g]
|
770 |
|
CE certificate (see declaration of conformity)
|
to EU pressure vessel directive |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Actuation torque for a pressure difference nominal pressure fitting [Nm]
|
37,0 |
|
Permission
|
DVGW gas |
|
Weight
|
770 g / Pcs |
|
GTIN
|
4052568274603 |
|
Customs duty number
|
84818081 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Ball valves (english) , Data sheet |
