Construction set up
|

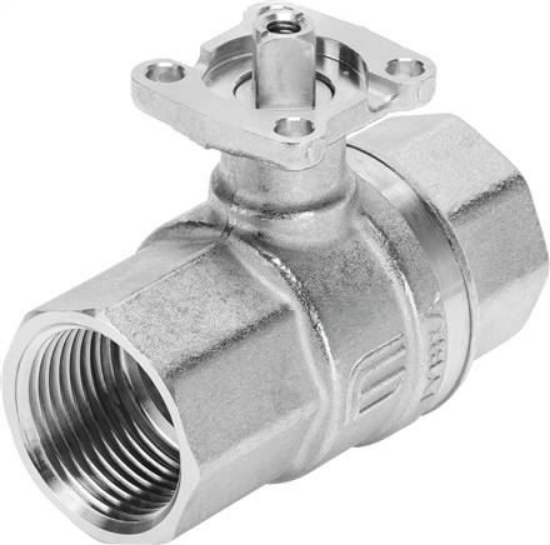

2-way ball valve |
Actuation type
|
Mechanical |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Fastening type
|
pipe installation |
Fitting connection
|
Rp1 1/4 |
Switching position display
|
Carriage direction = flow direction |
Flange drilling screen
|
F03 |
Inside diameter [mm]
|
32,0 |
Nominal width DN
|
32 |
Valve function
|
2/2 |
Flow direction
|
Reversible |
Nominal pressure fitting
|
25 |
Break-out torque at a pressure difference nominal fitting pressure PN [Nm]
|
7,5 |
Based on standard
|
EN 10226-1 |
medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
Medium temperature [°C]
|
-15 to 90 |
Flow Kv [Kubikmeter]
|
84,0 |
Material information
|
LABS containing materials included |
Housing material
|
brass |
Material number housing
|
CW617N |
Seals material
|
FPM |
Ball material
|
brass |
Material number ball
|
CW617N |
Shaft material
|
Brass |
Material number shaft
|
CW617N |
Product weight [g]
|
730 |
CE certificate (see declaration of conformity)
|
to EU pressure vessel directive |
Corrosion resistant class KBK
|
1 - low corrosion stress |
Weight
|
730 g / Pcs |
GTIN
|
4052568274528 |
Customs duty number
|
84818081 |
Manufacturer
|
Festo |
Document
|
Group data sheet: Ball valves (english) , Data sheet |
