Construction set up
|

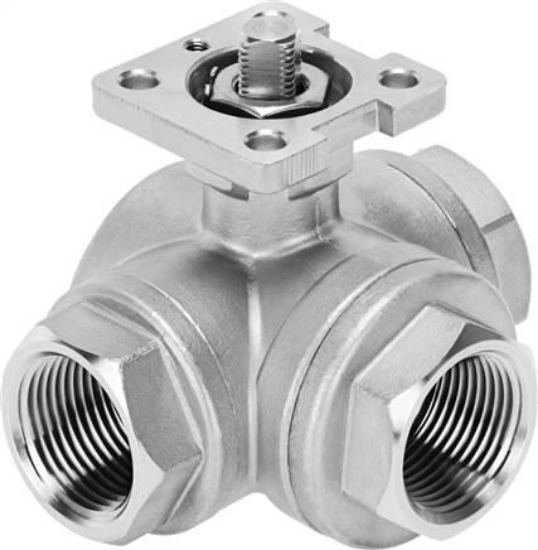

3-way ball valve |
|
Actuation type
|
Mechanical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
NPT3/4 |
|
Switching position display
|
Carriage direction = flow direction |
|
Inside diameter [mm]
|
16,0 |
|
Nominal width DN
|
20 |
|
Valve function
|
3/2 |
|
Flow direction
|
Reversible |
|
Nominal pressure fitting
|
63 |
|
Break-out torque at a pressure difference nominal fitting pressure PN [Nm]
|
14,3 |
|
Based on standard
|
ASME B1.20.1 |
|
medium
|
Compressed air acc. to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
-20 to 200 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
Cast stainless steel |
|
Material number housing
|
1.4408 |
|
Seals material
|
PTFE |
|
Ball material
|
Cast stainless steel |
|
Material number ball
|
1.4408 |
|
Shaft material
|
High-alloyed stainless steels |
|
Material number shaft
|
1.4401 |
|
Product weight [g]
|
1.024 |
|
Permission
|
CRN |
|
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
|
Flange drilling screen
|
F04 |
|
Flow Kv L-borehole [Kubikmeter]
|
3,2 |
|
Weight
|
1.024 g / Pcs |
|
GTIN
|
4052568275723 |
|
Customs duty number
|
84818081 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Ball valves (english) , Data sheet |
