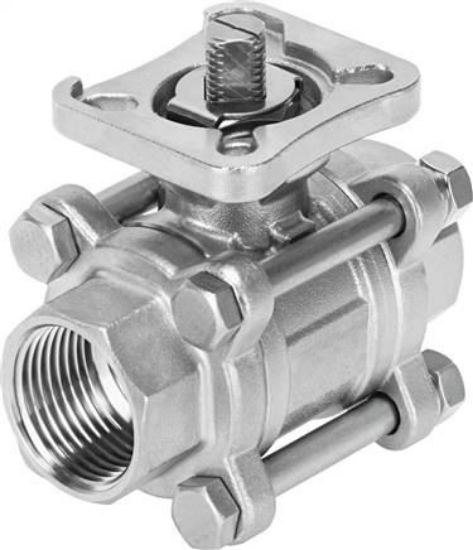

VZBE-3-T-63-T-2-F0710-V15V16 (4809124) شیر توپی (بال ولو) فستو

کد سفارش تولید کننده: 4809124
مشخصات
عنوان ویژگی مقدار ویژگی
Construction set up 2-way ball valve
Actuation type Mechanical
Sealing principle Soft
installation position arbitrary
Fastening type pipe installation
Fitting connection NPT3
Switching position display Carriage direction = flow direction
Inside diameter [mm] 76,0
Nominal width DN 80
Valve function 2/2
Flow direction Reversible
Nominal pressure fitting 63
Break-out torque at a pressure difference nominal fitting pressure PN [Nm] 70,0
Based on standard ASME B1.20.1
medium Compressed air acc. to ISO8573-1:2010 [-:-:-]
Medium temperature [°C] -20 to 200
Flow Kv [Kubikmeter] 264,5
Material information LABS containing materials included
Housing material Cast stainless steel
Material number housing 1.4408
Seals material FPM
Ball material High-alloyed stainless steels
Material number ball 1.4401
Shaft material High-alloyed stainless steels
Material number shaft 1.4401
Product weight [g] 7.750
Permission CRN
Corrosion resistant class KBK 4 - particularly severe corrosion stress
CE certificate (see declaration of conformity) to EU pressure vessel directive
Flange drilling screen F0710
Weight 7.750 g / Pcs
GTIN 4052568275556
Customs duty number 84818081
Manufacturer Festo
Document Group data sheet: Ball valves (english) Data sheet
