Construction set up
|

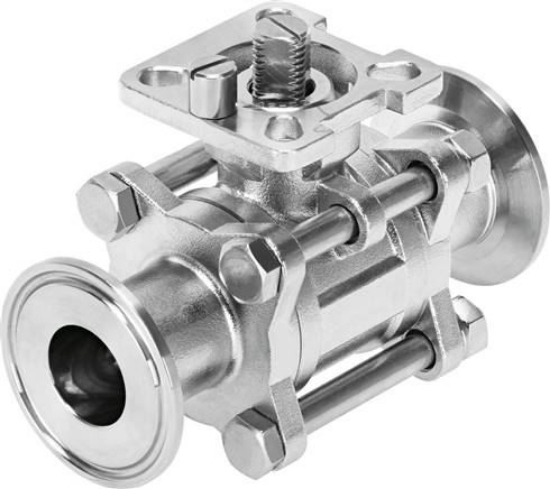

2-way ball valve |
Actuation type
|
Mechanical |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Fastening type
|
pipe installation |
Fitting connection
|
Clamp to ASME.BPE |
Switching position display
|
Carriage direction = flow direction |
Flange drilling screen
|
F0405 |
Inside diameter [mm]
|
22,1 |
Nominal width DN
|
25 |
Valve function
|
2/2 |
Flow direction
|
Reversible |
Nominal pressure fitting
|
16 |
Break-out torque at a pressure difference nominal fitting pressure PN [Nm]
|
15 |
Based on standard
|
ASME BPE |
medium
|
Compressed air acc. to ISO8573-1:2010 [-:-:-] |
Medium temperature [°C]
|
-20 to 200 |
Flow Kv [Kubikmeter]
|
19,8 |
Material information
|
LABS containing materials included |
Housing material
|
Cast stainless steel |
Material number housing
|
1.4409 |
Seat seal material
|
PTFE, modified |
Seals material
|
FPM |
Ball material
|
Cast stainless steel |
Material number ball
|
1.4409 |
Shaft material
|
High-alloyed stainless steels |
Material number shaft
|
1.4401 |
Product weight [g]
|
950 |
Permission
|
CRN |
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
Weight
|
950 g / Pcs |
GTIN
|
4052568275358 |
Customs duty number
|
84818081 |
Manufacturer
|
Festo |
Document
|
Group data sheet: Ball valves (english) , Data sheet |
