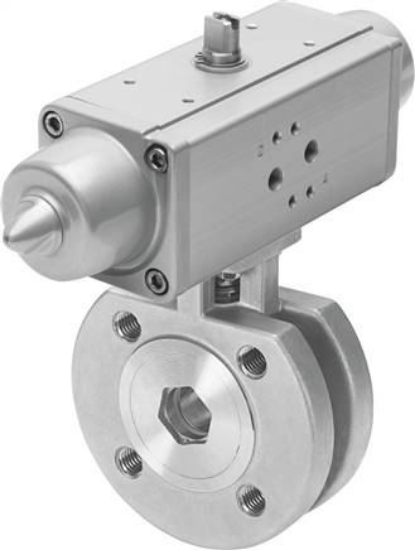

Construction set up
|
rotary actuator |
|
Actuation type
|
pneumatic |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
Ring housing with threaded flange |
|
Switching position display
|
Carriage direction = flow direction |
|
Nominal width DN
|
15 |
|
Nominal pressure fitting
|
40 |
|
medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
-10 to 200 |
|
Flow Kv [Kubikmeter]
|
19,4 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
High-alloyed stainless steels |
|
Material number housing
|
1.4408 |
|
Seals material
|
PTFE |
|
Ball material
|
High-alloyed stainless steels |
|
Material number ball
|
1.4408 |
|
Shaft material
|
High-alloyed stainless steels |
|
Material number shaft
|
1.4401 |
|
Product weight [g]
|
2.850 |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
Operating pressure [bar]
|
6 to 8.4 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
ambient temperature [°C]
|
-10 to 80 |
|
Max. surface temperature assembly
|
TX |
|
Explosion group assembly
|
IIC, IIIC |
|
Ex ambient temperature
|
-10°C <= Ta <= +60°C |
|
Weight
|
2.850 g / Pcs |
|
GTIN
|
4052568249595 |
|
Customs duty number
|
84818081 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Ball valve actuator units (english) , Data sheet |
