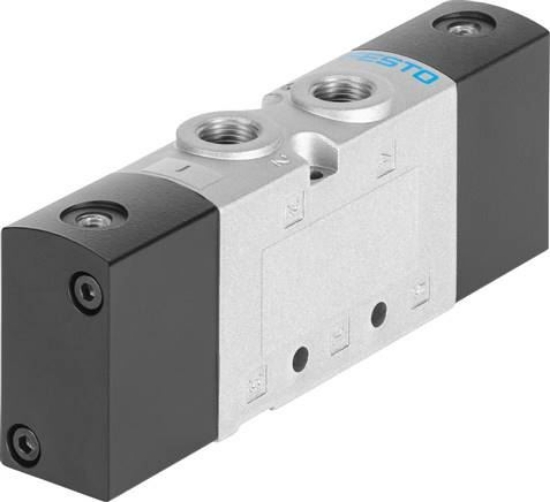

Valve function
|
2x3/2 open/closed monostable |
|
Actuation type
|
pneumatic |
|
Valve size [mm]
|
26,5 |
|
Normal nominal flow [l/min]
|
1.000 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Construction set up
|
Plate seat |
|
Reset mode
|
Mechanical spring |
|
Permission
|
c UL us - Recognized (OL) |
|
Nominal width [mm]
|
6,9 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
none |
|
Control type
|
Direct |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Coverage
|
negative Überdeckung |
|
Control pressure [bar]
|
2.5 to 10 |
|
Shifting time off [ms]
|
30 |
|
Shifting time on [ms]
|
7 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
-5 to 60 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-5 to 60 |
|
Product weight [g]
|
377 |
|
Fastening type
|
With throughway bores |
|
Breathing opening connection
|
Not recorded |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Material information
|
RoHs compliant |
|
Seals material
|
HNBR |
|
Housing material
|
Aluminium die casting |
|
Screws material
|
Zinc-plated steel |
|
Control air 10 connection
|
M5 |
|
Control air 14 connection
|
M5 |
|
Pneumatic connection 4
|
G1/4 |
|
Pneumatic connection 5
|
G1/4 |
|
Weight
|
377 g / Pcs |
|
GTIN
|
4052568294403 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VUWS (english) , Data sheet |
