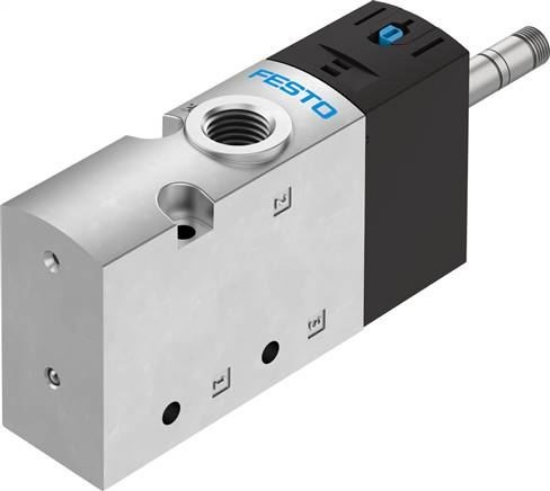

VUVS-LT30-M32U-MD-G38-F8 (8036679) شیر برقی پنوماتیک فستو

کد سفارش تولید کننده: 8036679
مشخصات
عنوان ویژگی مقدار ویژگی
Valve function 3/2 open monostable
Actuation type Electrical
Valve size [mm] 31,0
Normal nominal flow [l/min] 1.600
Operating pressure [bar] 2.5 to 10
Construction set up Plate seat
Reset mode Mechanical spring
Permission c UL us - Recognized (OL)
Nominal width [mm] 7,9
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratcheting
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
Coverage negative Überdeckung
b-value 0.2
C-value [] 7,0
Shifting time off [ms] 36
Shifting time on [ms] 14
Max. positive test impulse at 0 signal [Mikrosekun] 2.000
Max. negative test impulse for 1 signal [Mikrosekun] 3.600
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 2 - moderate corrosion stress
Medium temperature [°C] -10 to 60
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [°C] -10 to 60
Product weight [g] 305
Fastening type With throughway bores
Breathing opening connection Not recorded
Pneumatic connection 1 G3/8
Pneumatic connection 2 G3/8
Pneumatic connection 3 G3/8
Material information RoHs compliant
Seals material HNBR
Housing material Die cast aluminium, painted
Piston pusher material Aluminium wrought alloy
Screws material Zinc-plated steel
Exhaust control connection 82 M5
Coil characteristic value See solenoid coil, order separately
Weight 305 g / Pcs
Customs duty number 84812090
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: VUVS (english) Data sheet
