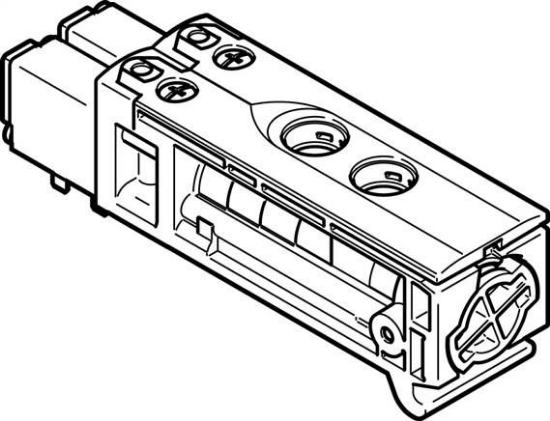

VUVB-ST12-B52-ZD-QX-D-1T1 (570911) شیربرقی پنوماتیک فستو

کد سفارش تولید کننده: 570911
مشخصات
عنوان ویژگی مقدار ویژگی
Valve function 5/2 bistable
Actuation type Electrical
Valve size [mm] 24
Normal nominal flow [l/min] 260 to 450
Operating pressure [bar] 2.8 to 8
Construction set up Poppet valve with self-retention
Protection category IP65
Nominal width [mm] 4
Exhaust function Cannot be throttled
Sealing principle Soft
installation position arbitrary
Hand assist actuation Ratcheting
Control type pilot operated
Control air supply external
Flow direction Not reversible
Information about operating pressure 0 - 8 bar for external control air
Control pressure [bar] 2.8 to 8
Power-on time 100%
Max. positive test impulse at 0 signal [Mikrosekun] 800
Max. negative test impulse for 1 signal [Mikrosekun] 300
Coil characteristic value 24 V DC: 1 W
Permitted voltage oscillations ± 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 - No corrosion stressing
Medium temperature [°C] -5 to 60
Noise level [Dezibel (?] 85
ambient temperature [°C] -5 to 60
Product weight [g] 57,4
electrical connection: Via connection plate
Fastening type on connection plate
Support air control connection 14 Connection plate
Pneumatic connection 1 Connection plate
Pneumatic connection 3 Connection plate
Pneumatic connection 5 Connection plate
Material information Copper and PTFE-free
Seals material NBR
Housing material PA reinforced
Piston pusher material Aluminium wrought alloy
Shifting time um [ms] 10
Weight 57,4 g / Pcs
GTIN 4052568217501
Customs duty number 84812090
Manufacturer Festo
Document Group data sheet: Valve terminal VTUB-12 (english) Data sheet
