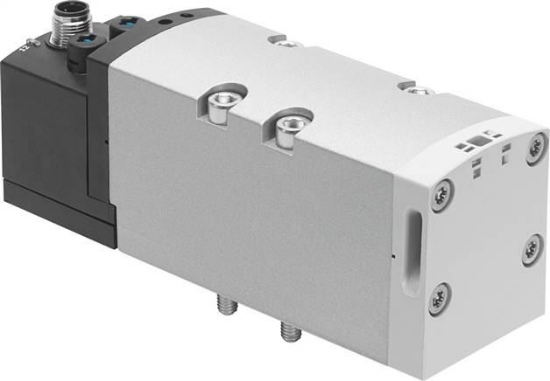

Valve function
|
2x3/2 open monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
52 |
|
Operating pressure [bar]
|
3 to 10 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Pneumatic spring |
|
Protection category
|
IP65 |
|
Permission
|
C-tick |
|
Nominal width [mm]
|
15 |
|
Pitch dimension [mm]
|
59 |
|
Exhaust function
|
drosselbar |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 5599-1 |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Flow direction
|
Not reversible |
|
Coverage
|
positive Überdeckung |
|
Signal condition display
|
LED |
|
Control pressure [bar]
|
3 to 10 |
|
Flow valve [l/min]
|
3.000 |
|
Flow valve single connection plate [l/min]
|
2.000 |
|
Flow valve pneumatically linked [l/min]
|
2.200 |
|
Shifting time off [ms]
|
35 |
|
Shifting time on [ms]
|
20 |
|
Power-on time
|
100% |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
1.000 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
3.500 |
|
Nominal tightening current per solenoid
|
165 mA to 30 ms |
|
Nominal current for current reduction
|
35 mA after 30 ms |
|
Coil characteristic value
|
24 V DC: 4,6 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Medium temperature [°C]
|
-5 to 50 |
|
Relative humidity
|
0 - 90 % |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
740 |
|
electrical connection:
|
M12x1 |
|
Fastening type
|
on connection plate |
|
Support air control connection 12/14
|
Connection plate Size 2 to ISO 5599-1 |
|
Exhaust control connection 82/84
|
Selectively: |
|
Material information
|
RoHs compliant |
|
Seals material
|
FKM |
|
Housing material
|
PA |
|
Normal nominal flow [l/min]
|
2.200 |
|
Pneumatic connection 1
|
Connection plate Size 2 to ISO 5599-1 |
|
Pneumatic connection 2
|
Connection plate Size 2 to ISO 5599-1 |
|
Pneumatic connection 3
|
Connection plate Size 2 to ISO 5599-1 |
|
Pneumatic connection 4
|
Connection plate Size 2 to ISO 5599-1 |
|
Pneumatic connection 5
|
Connection plate Size 2 to ISO 5599-1 |
|
Screws material
|
Steel |
|
KC-mark
|
KC-EMV |
|
Weight
|
740 g / Pcs |
|
GTIN
|
4052568214975 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Standard valves to ISO 5599-1 (english) , Data sheet |
