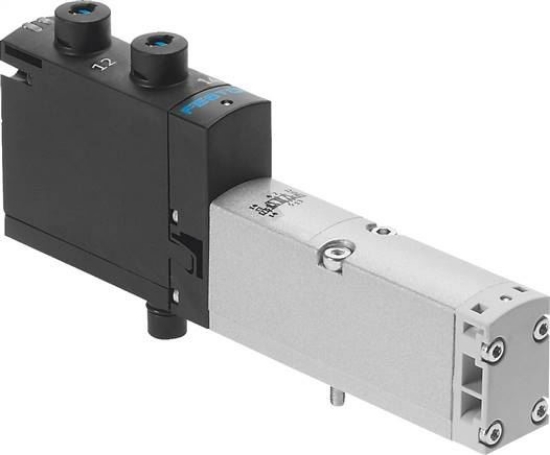

VSVA-B-P53U-ZTR-A2-1T1L (8033454) شیربرقی ایزو فستو

کد سفارش تولید کننده: 8033454
مشخصات
عنوان ویژگی مقدار ویژگی
Valve function 5/3 ventilated
Actuation type Electrical
Build.width [mm] 18
Normal nominal flow [l/min] 450
Operating pressure [bar] -0.9 to 10
Construction set up Piston pusher
Protection category IP65
Exhaust function drosselbar
Sealing principle Soft
installation position arbitrary
Hand assist actuation With Accessories ratcheting
Control type pilot operated
Control air supply external
Flow direction arbitrary
Coverage positive Überdeckung
Signal condition display LED
Control pressure [bar] 3 to 10
Flow valve [l/min] 700
Flow valve single connection plate [l/min] 500
Flow valve pneumatically linked flow optimised [l/min] 480
Flow valve pneumatically linked [l/min] 450
Shifting time off [ms] 44
Shifting time on [ms] 15
Power-on time 100%
Coil characteristic value 24 V DC: 1,6 W
Surge voltage strength [kV] 2,5
Degree of contamination 3
Permitted voltage oscillations ± 10 %
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Corrosion resistant class KBK 0 - No corrosion stressing
Relative humidity 0 - 90 %
control medium Compressed air to ISO 8573-1:2010 [7:4:4]
ambient temperature [°C] -5 to 50
Product weight [g] 191
electrical connection: Plug-in
Fastening type on connection plate
Support air control connection 12/14 Connection plate Size 18 mm to ISO 15407-2
Exhaust control connection 82/84 Selectively:
Pneumatic connection 1 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 2 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 3 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 4 Connection plate Size 18 mm to ISO 15407-2
Pneumatic connection 5 Connection plate Size 18 mm to ISO 15407-2
Material information RoHs compliant
Seals material FKM
Housing material PA
Screws material Zinc-plated steel
Permission CSA (OL)
Max. positive test impulse at 0 signal [Mikrosekun] 1.500
Max. negative test impulse for 1 signal [Mikrosekun] 800
Nominal operating voltage DC [V] 24
Weight 191 g / Pcs
Customs duty number
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: Valve terminal VTSA / VTSA-F (english) Data sheet
