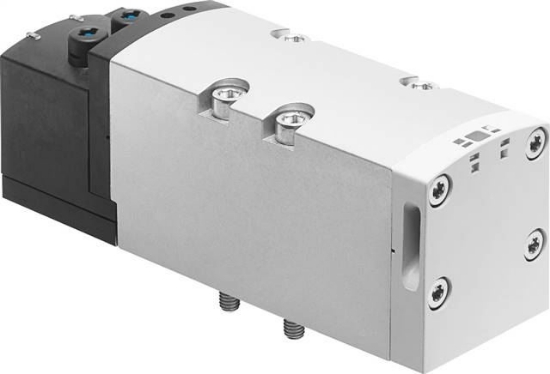

Valve function
|
5/2 bi-stable dominated |
Actuation type
|
Electrical |
Build.width [mm]
|
52 |
Normal nominal flow [l/min]
|
2.900 |
Operating pressure [bar]
|
-0.9 to 10 |
Construction set up
|
Piston pusher |
Protection category
|
IP65 |
Exhaust function
|
drosselbar |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Hand assist actuation
|
Ratcheting |
Control type
|
pilot operated |
Control air supply
|
external |
Flow direction
|
arbitrary |
Signal condition display
|
LED |
Control pressure [bar]
|
3 to 10 |
Flow valve [l/min]
|
4.000 |
Flow valve single connection plate [l/min]
|
3.400 |
Flow valve pneumatically linked [l/min]
|
2.900 |
Power-on time
|
100% |
Coil characteristic value
|
24 V DC: 4,6 W |
Surge voltage strength [kV]
|
2,5 |
Degree of contamination
|
3 |
Permitted voltage oscillations
|
± 10 % |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
CE certificate (see declaration of conformity)
|
to EU EMC directive |
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
Corrosion resistant class KBK
|
0 - No corrosion stressing |
Relative humidity
|
0 - 90 % |
ambient temperature [°C]
|
-5 to 50 |
Product weight [g]
|
732 |
electrical connection:
|
Plug-in |
Fastening type
|
on connection plate |
Support air control connection 12/14
|
Connection plate Size 2 to ISO 5599-2 |
Exhaust control connection 82/84
|
Selectively: |
Pneumatic connection 1
|
Connection plate Size 2 to ISO 5599-2 |
Pneumatic connection 2
|
Connection plate Size 2 to ISO 5599-2 |
Pneumatic connection 3
|
Connection plate Size 2 to ISO 5599-2 |
Pneumatic connection 4
|
Connection plate Size 2 to ISO 5599-2 |
Pneumatic connection 5
|
Connection plate Size 2 to ISO 5599-2 |
Material information
|
RoHs compliant |
Seals material
|
FKM |
Housing material
|
PA |
Screws material
|
Zinc-plated steel |
Shifting time um [ms]
|
18 |
Permission
|
C-tick |
Max. positive test impulse at 0 signal [Mikrosekun]
|
1.000 |
Max. negative test impulse for 1 signal [Mikrosekun]
|
3.500 |
KC-mark
|
KC-EMV |
Medium temperature [°C]
|
-5 to 50 |
Pitch dimension [mm]
|
59 |
Complies to standard
|
ISO 5599-2 |
Nominal tightening current per solenoid
|
165 mA to 30 ms |
Nominal current for current reduction
|
35 mA after 30 ms |
Weight
|
732 g / Pcs |
GTIN
|
4052568207991 |
Customs duty number
|
84812090 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: Valve terminal VTSA / VTSA-F (english) , Data sheet |
