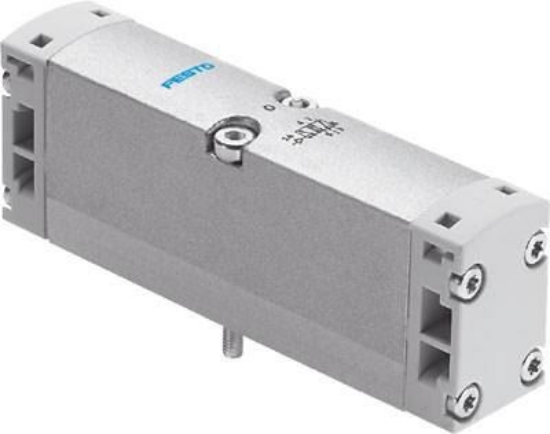

Valve function
|
5/3 ventilated |
|
Actuation type
|
pneumatic |
|
Build.width [mm]
|
18 |
|
Normal nominal flow [l/min]
|
450 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Mechanical spring |
|
Nominal width [mm]
|
5 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 15407-1 |
|
Control type
|
Direct |
|
Flow direction
|
Reversible |
|
Coverage
|
positive Überdeckung |
|
Control pressure [bar]
|
3 to 10 |
|
Flow valve [l/min]
|
650 |
|
Flow valve single connection plate [l/min]
|
500 |
|
Flow valve pneumatically linked [l/min]
|
450 |
|
Shifting time off [ms]
|
18 |
|
Shifting time on [ms]
|
9 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Medium temperature [°C]
|
-10 to 60 |
|
Relative humidity
|
0 - 90 % |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-10 to 60 |
|
Max. tightening torque Valve fastening [Nm]
|
0.9 to 1.1 |
|
Product weight [g]
|
80 |
|
Control air 12 connection
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Control air 14 connection
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Pneumatic connection 1
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Pneumatic connection 2
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Pneumatic connection 3
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Pneumatic connection 4
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Pneumatic connection 5
|
Connection plate Size 18 mm to ISO 15407-1 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Screws material
|
Steel |
|
Weight
|
80 g / Pcs |
|
GTIN
|
4052568092405 |
|
Customs duty number
|
84812090 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Manifold components, ISO 15 407-1 (english) , Data sheet |
