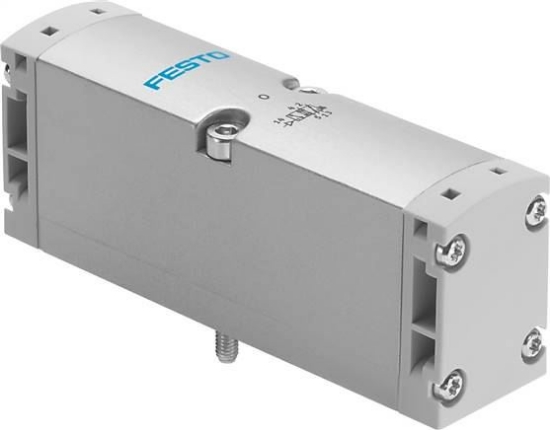

Valve function
|
5/2 bistable |
Actuation type
|
pneumatic |
Build.width [mm]
|
26 |
Normal nominal flow [l/min]
|
1.100 |
Operating pressure [bar]
|
-0.9 to 16 |
Construction set up
|
Piston pusher |
Nominal width [mm]
|
9 |
Exhaust function
|
Can be throttled |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Complies to standard
|
ISO 15407-1 |
Control type
|
Direct |
Flow direction
|
Reversible |
Coverage
|
positive Überdeckung |
Control pressure [bar]
|
2 to 10 |
Flow valve [l/min]
|
1.400 |
Flow valve single connection plate [l/min]
|
1.100 |
Flow valve pneumatically linked [l/min]
|
1.100 |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK
|
0 - No corrosion stressing |
Medium temperature [°C]
|
-10 to 60 |
Relative humidity
|
0 - 90 % |
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
ambient temperature [°C]
|
-10 to 60 |
Max. tightening torque Valve fastening [Nm]
|
1.8 to 2.2 |
Product weight [g]
|
180 |
Control air 12 connection
|
Connection plate Size 26 mm to ISO 15407-1 |
Control air 14 connection
|
Connection plate Size 26 mm to ISO 15407-1 |
Pneumatic connection 1
|
Connection plate Size 26 mm to ISO 15407-1 |
Pneumatic connection 2
|
Connection plate Size 26 mm to ISO 15407-1 |
Pneumatic connection 3
|
Connection plate Size 26 mm to ISO 15407-1 |
Pneumatic connection 4
|
Connection plate Size 26 mm to ISO 15407-1 |
Pneumatic connection 5
|
Connection plate Size 26 mm to ISO 15407-1 |
Material information
|
RoHs compliant |
Seals material
|
NBR |
Housing material
|
Aluminium die casting |
Screws material
|
Steel |
Shifting time um [ms]
|
10 |
Weight
|
180 g / Pcs |
GTIN
|
4052568092290 |
Customs duty number
|
84812090 |
Manufacturer
|
Festo |
Document
|
Group data sheet: Manifold components, ISO 15 407-1 (english) , Data sheet |
