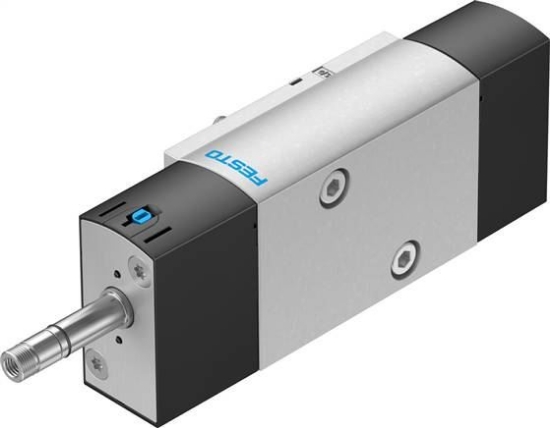

Valve function
|
5/2 or 3/2 adjustable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
32 |
|
Normal nominal flow [l/min]
|
800 |
|
Operating pressure [bar]
|
2.5 to 8 |
|
Construction set up
|
Plate seat |
|
Reset mode
|
Mechanical spring |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
VDI/VDE 3845 (NAMUR) |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
pilot operated |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Coverage
|
negative Überdeckung |
|
Signal condition display
|
With Accessories |
|
b-value
|
0.15 |
|
C-value []
|
3,96 |
|
Normal nominal flow, exhaust return line 4->3 [l/min]
|
110 |
|
Shifting time off [ms]
|
120 |
|
Shifting time on [ms]
|
16 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
24 V DC: 0,7 W |
|
Certified awarding point
|
DNVGL-TAA000011J |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
-20 to 60 |
|
ambient temperature [°C]
|
-20 to 60 |
|
Product weight [g]
|
495 |
|
Fastening type
|
With throughway bores |
|
Breathing opening connection
|
Not recorded |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
NAMUR wiring diagram |
|
Pneumatic connection 3
|
G1/4 |
|
Pneumatic connection 4
|
NAMUR wiring diagram |
|
Pneumatic connection 5
|
G1/4 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Screws material
|
High-alloyed stainless steels |
|
Protection category
|
IP65 |
|
Permitted voltage oscillations
|
± 10 % |
|
electrical connection:
|
Wiring diagram Form A acc. to EN 175301-803 |
|
Weight
|
495 g / Pcs |
|
Customs duty number
|
84812090 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VSNC (english) , Data sheet |
