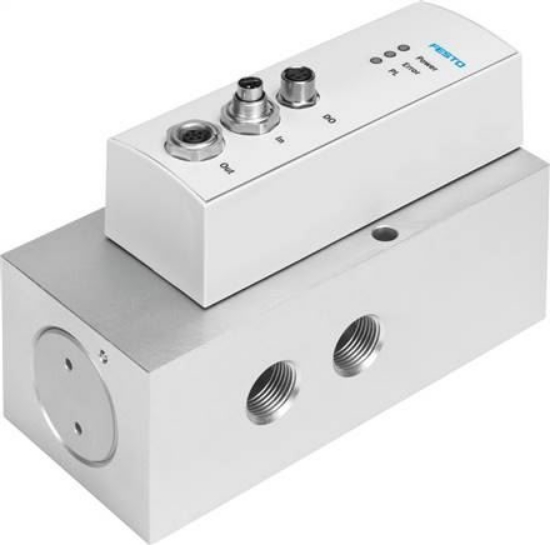

Nominal width [mm]
|
10 |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Hard |
|
installation position
|
arbitrary |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Spring magnetic |
|
Safety instructions
|
Safety position VPWP |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
Valve function
|
5/3-way proportional control valve, closed |
|
Status displays
|
LED yellow = PL (Power Load) |
|
Operating pressure [bar]
|
0 to 10 |
|
Operating pressure positioning / soft stop [bar]
|
4 to 8 |
|
Nominal operating pressure [bar]
|
6 |
|
Normal nominal flow [l/min]
|
2.000 |
|
Nominal operating voltage DC [V]
|
24 |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Load voltage range DC [V]
|
18 to 30 |
|
Max. load current voltage output [mA]
|
500 |
|
Max. load current digital output [mA]
|
500 |
|
Max. power input valve actuator [A]
|
1,2 |
|
Max. power input logic [A]
|
0,15 |
|
Nominal load voltage DC [V]
|
24 |
|
Supply voltage digital output
|
24 V load voltage |
|
Supply voltage, voltage output
|
24 V load voltage |
|
ATEX gas category
|
II 3G |
|
Ex ignition protection type gas
|
Ex nA IIC T5 X Gc |
|
Ex ambient temperature
|
0°C <= Ta <= +50°C |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [6:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Medium temperature [°C]
|
0 to 50 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
0 to 50 |
|
Permission
|
RCM mark |
|
Product weight [g]
|
1.010 |
|
Resolution pressure [bar]
|
0,01 |
|
Linearity error FS [%]
|
< 1,5 % |
|
Repeatability FS [%]
|
< 1 % |
|
Design 24 V voltage output
|
No galvanic separation |
|
Design digital output
|
No galvanic separation |
|
Control interface
|
Digital |
|
Electrical connection: fieldbus interface IN
|
M9 |
|
Electrical connection: fieldbus interface OUT
|
M9 |
|
Electrical connection: fieldbus interface
|
M8 |
|
Fastening type
|
With throughway bores |
|
Colour of connections
|
Connection 2 Blue |
|
Pneumatic connection 1
|
G3/8 |
|
Pneumatic connection 2
|
G3/8 |
|
Pneumatic connection 3
|
G3/8 |
|
Pneumatic connection 4
|
G3/8 |
|
Pneumatic connection 5
|
G3/8 |
|
Material information
|
RoHs compliant |
|
Cover material
|
PA reinforced |
|
Housing material
|
Aluminium wrought alloy |
|
Weight
|
1.010 g / Pcs |
|
GTIN
|
4052568239350 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet , Group data sheet: VPWP |
