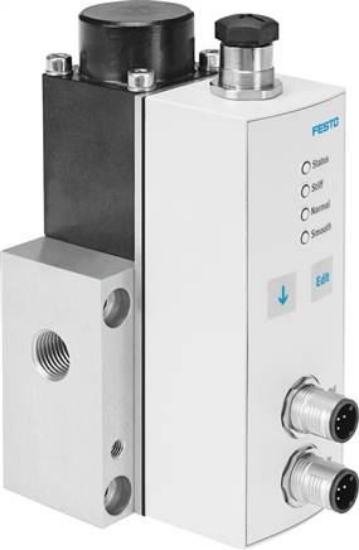

Nominal width ventilation [mm]
|
2,5 |
|
Nominal width venting [mm]
|
2,5 |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Construction set up
|
Directly controlled piston control valve |
|
Short circuit resistance
|
no |
|
Safety instructions
|
Safety position VPPL |
|
Reverse polarity protection
|
for all electrical connections |
|
Reset mode
|
Mechanical spring |
|
Control type
|
Direct |
|
Valve function
|
3-way proportional pressure regulator valve closed |
|
Display type
|
LED display |
|
Pressure regulation range [bar]
|
0.2 to 20 |
|
Input pressure 1 [bar]
|
0 to 50 |
|
Max. pressure hysteresis [bar]
|
0,3 |
|
b-value
|
0.25 |
|
C-value []
|
0,8 |
|
Normal nominal flow [l/min]
|
300 |
|
Shifting time off [ms]
|
550 |
|
Shifting time on [ms]
|
300 |
|
Operating voltage range DC [V]
|
21.6 to 27.6 |
|
Power-on time
|
100% |
|
Max. electrical power consumption [W]
|
26,7 |
|
residual ripple
|
10 % |
|
Signal range analogue output
|
0 - 10 V |
|
Signal range analogue input
|
0 - 10 V |
|
TARGET / ACTUAL value
|
Voltage type 0 - 10 V |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
5 to 50 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
5 to 50 |
|
Product weight [g]
|
1.100 |
|
Linearity error in ± %FS []
|
0,5 |
|
Temperature coefficient [%/K]
|
0,04 |
|
Repeatability in ± %FS []
|
0,5 |
|
Electrical connection: diagnose interface
|
Socket, M12, 5-pin A-coded |
|
Electrical connection IN
|
plug, M12, 5 pin, A-coded |
|
Electrical connection: OUT
|
plug, M12, 5 pin, A-coded |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
flange |
|
Pneumatic connection 3
|
flange |
|
Material information
|
RoHs compliant |
|
Housing material
|
Aluminium wrought alloy |
|
Weight
|
1.100 g / Pcs |
|
Customs duty number
|
84811099 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Pneumatic components for high-pressure applications (english) , Data sheet |
