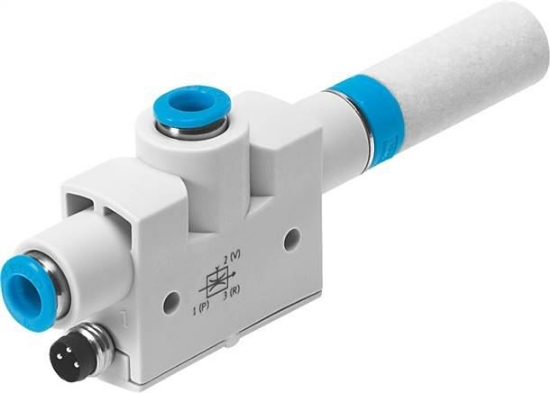

Nominal width laval nozzle [mm]
|
0,45 |
|
Pitch dimension [mm]
|
16,0 |
|
installation position
|
arbitrary |
|
Ejector characteristic
|
High suction volume flow |
|
Construction set up
|
T-shape |
|
Operating pressure for max. suction volume flow [bar]
|
5,0 |
|
Operating pressure [bar]
|
1 to 8 |
|
Nominal operating pressure [bar]
|
6 |
|
Max. suction volume current against atmosphere [l/min]
|
13,6 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Medium temperature [°C]
|
0 to 60 |
|
ambient temperature [°C]
|
0 to 50 |
|
Max. tightening torque [Nm]
|
0,6 |
|
Product weight [g]
|
33 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
QS-6 |
|
Pneumatic connection 3
|
Silencer open |
|
vacuum connection
|
QS-6 |
|
Seals material
|
NBR |
|
Capture nozzle material
|
POM |
|
Housing material
|
POM reinforced |
|
Jet nozzle material
|
Aluminium wrought alloy |
|
Screw connection material
|
brass |
|
Construction type silencer type
|
open |
|
Integrated function
|
Silencer open |
|
Noise level for nominal operating pressure [Dezibel (?]
|
54 |
|
Silencer material
|
PE |
|
Row switching recommendation
|
Soapy water |
|
Short circuit resistance
|
Cycling |
|
Measured parameter
|
Relative pressure |
|
Measurement principle
|
Piezoresistive |
|
Measurement process
|
Relative |
|
Switching element function
|
NO contact |
|
Switch function
|
Threshold comparator |
|
Reverse polarity protection
|
for all electrical connections |
|
Display type
|
LED |
|
Settings range threshold value [bar]
|
-1 |
|
Setting options
|
Teach-in |
|
Switching status indicator
|
LED |
|
Switch off time [ms]
|
<= 4 ms |
|
Switch on time [ms]
|
<= 4 ms |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Inductive protection circuit
|
adjusted to MZ, MY, ME coils |
|
Max. output current [mA]
|
100 |
|
Residual current [mA]
|
<= 0,3 mA |
|
residual ripple
|
10 % |
|
Control output
|
PNP |
|
Voltage drop [V]
|
<= 1,5 V |
|
Overload resistant
|
Available |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Protection category
|
IP40 |
|
Permission
|
RCM mark |
|
Pressure measurement range [bar]
|
-1 |
|
Accuracy FS []
|
1,5 |
|
Long term drift
|
± 0.5 % FS max. |
|
Temperature coefficient switch point [%/K]
|
0,05 |
|
electrical connection:
|
M8 |
|
Light guide material
|
PC |
|
Plug housing material
|
PA |
|
Button field material
|
POM |
|
Weight
|
33 g / Pcs |
|
GTIN
|
4052568171872 |
|
Customs duty number
|
84141089 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VN (english) , Data sheet |
