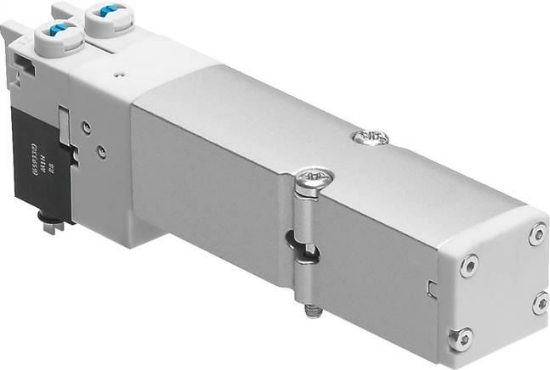

Valve function
|
5/2 bistable |
|
Actuation type
|
Electrical |
|
Valve size [mm]
|
20 |
|
Normal nominal flow [l/min]
|
860 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Construction set up
|
Piston pusher |
|
Protection category
|
IP65 |
|
Permission
|
c UL us - Recognized (OL) |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
pilot operated |
|
Flow direction
|
Reversible |
|
Coverage
|
positive Überdeckung |
|
Signal condition display
|
yes |
|
Control pressure [bar]
|
3 to 8 |
|
Vacuum capable
|
yes |
|
Shifting time on [ms]
|
9 |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
400 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
900 |
|
Permitted voltage oscillations
|
± 25 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-20 to 40 |
|
Medium temperature [°C]
|
-5 to 50 |
|
Relative humidity
|
max. 90 % at 40 °C |
|
ambient temperature [°C]
|
-5 to 50 |
|
Max. tightening torque Valve fastening [Nm]
|
0,65 |
|
Product weight [g]
|
100 |
|
Fastening type
|
With throughway bores |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium die casting |
|
Shifting time um [ms]
|
22 |
|
Normal nominal flow with QS-8 [l/min]
|
670 |
|
Normal nominal flow with QS 10 [l/min]
|
860 |
|
Weight
|
100 g / Pcs |
|
GTIN
|
4052568005634 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal MPA-S (english) , Data sheet |
