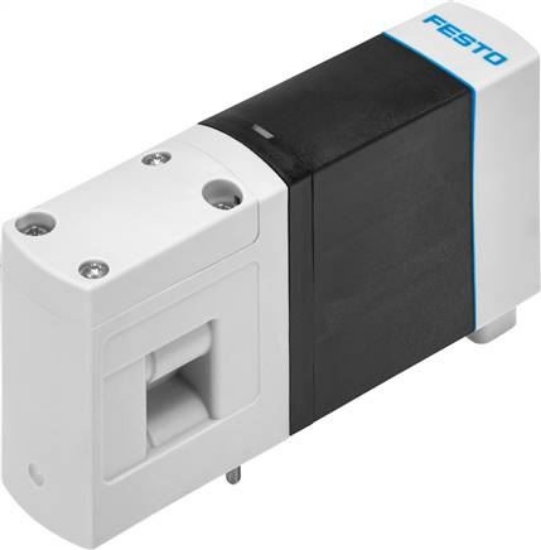

Valve size [mm]
|
27 |
|
Pitch dimension [mm]
|
28 |
|
Valve function
|
assignable per motion App |
|
Motion Apps
|
Diagnosis leakage |
|
Construction set up
|
Piston seat |
|
Sealing principle
|
Soft |
|
Actuation type
|
Electrical |
|
Control type
|
pilot operated |
|
Reset mode
|
Mechanical spring |
|
installation position
|
arbitrary |
|
Exhaust function
|
Cannot be throttled |
|
Control air supply
|
external |
|
Vacuum capable
|
yes |
|
Flow direction
|
Not reversible |
|
Protection category
|
IP65 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
PA |
|
Seals material
|
NBR |
|
Fire inspection, material
|
UL94 HB |
|
Food compatibility
|
See expanded material information |
|
Product weight [g]
|
200 |
|
Shifting time on [ms]
|
8,5 |
|
Shifting time off [ms]
|
8,5 |
|
Switch off time [ms]
|
<= 45 ms |
|
Nominal width [mm]
|
4,2 |
|
Normal nominal flow [l/min]
|
480 |
|
Status display
|
LED blue = normal condition |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Operating pressure [bar]
|
3 to 8 |
|
Control pressure [bar]
|
3 to 8 |
|
Information about operating pressure
|
Vacuum mode -0.95 to 0 bar, may only be connected to connection 3 |
|
Nominal operating voltage DC [V]
|
24 |
|
Permitted voltage oscillations
|
± 25 % |
|
Power-on time
|
100% |
|
Electrical power consumption [W]
|
1,25 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 40 |
|
Medium temperature [°C]
|
-5 to 50 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Relative humidity
|
0 - 90 % |
|
Pneumatic connection 2
|
G1/8 |
|
Pneumatic connection 4
|
G1/8 |
|
Control air 14 connection
|
M5 |
|
Pneumatic connection 1
|
G3/8 |
|
Pneumatic connection 3
|
G3/8 |
|
Exhaust control connection 84
|
M7 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Information on shock resistance
|
Only static installation permitted for installation with slot rail |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
< 1 ms |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
< 1 ms |
|
Weight
|
200 g / Pcs |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VTEM , Data sheet |
