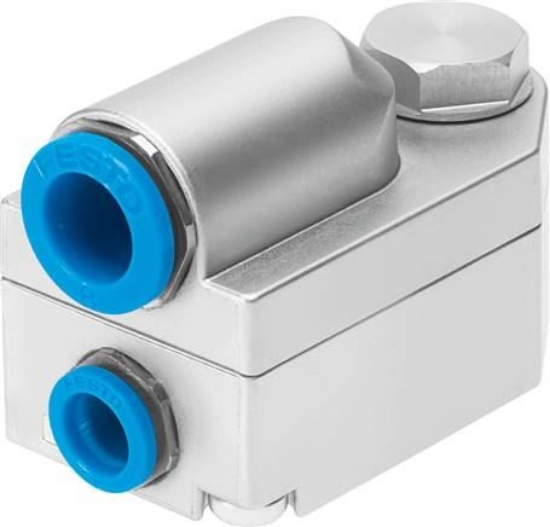

Valve function
|
Quick venting |
|
Pneumatic connection 1
|
QS-6 |
|
Pneumatic connection 2
|
G1/8 |
|
Fastening type
|
Screwable |
|
Normal flow Venting 6>0 bar [l/min]
|
1.300 |
|
Normal nominal flow venting 6->5 bar [l/min]
|
350 |
|
Operating pressure [bar]
|
0.2 to 10 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Housing material
|
Aluminium die casting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Nominal width [mm]
|
5 |
|
installation position
|
arbitrary |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Medium temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
105,0 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Normal nominal flow venting [l/min]
|
850 |
|
Pneumatic connection 3
|
QS-8 |
|
Weight
|
105,0 g / Pcs |
|
GTIN
|
4052568092863 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VBQF (english) , Data sheet |
