Complies to standard
|
DIN 47100 |
|

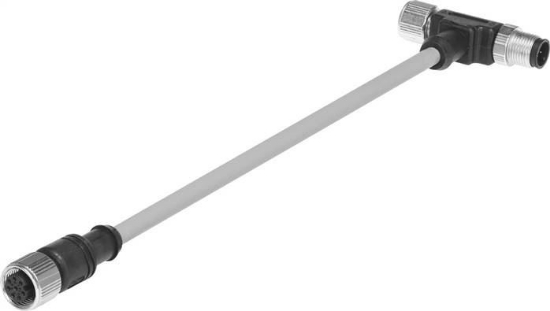

Construction set up
|
T distributor with cable control side |
|
Distributor type
|
1 to 2 |
|
Additional functions
|
Programming interface for proportional pressure regulator valve |
|
Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 1, number of pins / wires
|
8 |
|
Electrical connection 1, occupied pin / wire
|
8 |
|
Electrical connection 1, fastening type
|
Screw lock with SW14 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, design
|
round |
|
Electrical connection 2, connection type
|
Plug |
|
Electrical connection 2, cable output
|
straight |
|
Electrical connection 2, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 2, number of pins / wires
|
8 |
|
Electrical connection 2, occupied pin / wire
|
8 |
|
Electrical connection 2, fastening type
|
Screw lock with SW14 |
|
Electrical connection 3, function
|
Control screen |
|
Electrical connection 3, design
|
round |
|
Electrical connection 3, connection type
|
socket / container / …. |
|
Electrical connection 3, cable output
|
straight |
|
Electrical connection 3, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 3, number of pins / wires
|
5 |
|
Electrical connection 3, occupied pin / wire
|
4 |
|
Electrical connection 3, fastening type
|
Screw lock |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Operating voltage range AC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
2 |
|
Cable length 1 [MTR]
|
0,15 |
|
Line properties
|
Standard |
|
Cable diameter 1 [mm]
|
6,3 |
|
Tolerance, cable diameter 1
|
± 0,2 mm |
|
Cable set up
|
8x0,25 |
|
Conductor - nominal cross-section [mm²]
|
0,25 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-25 to 80 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 80 |
|
Material information
|
halogen free |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Housing material
|
TPE-U(PUR) |
|
Housing colour
|
#000000 |
|
Screw lock material
|
Zinc pressure cast, nickel-plated |
|
Seals material
|
NBR |
|
Plug contacts material
|
brass, Gold plated |
|
Weight
|
46 g / Pcs |
|
GTIN
|
4052568217617 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet , Group data sheet: VPPX |
