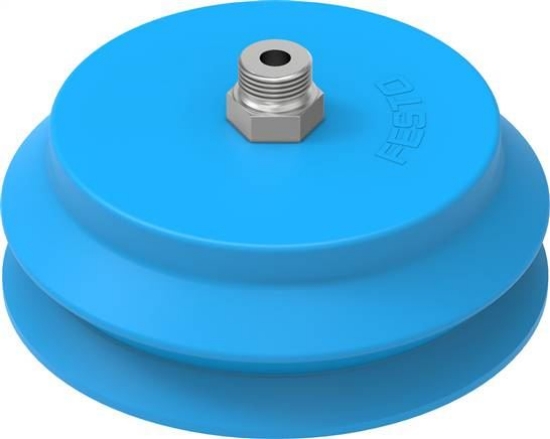

Height balance suction cup [mm]
|
25,0 |
Nominal width [mm]
|
7,0 |
Suction diameter [mm]
|
125 |
Suction volumes [cm³]
|
307,000 |
Connection position
|
top |
installation position
|
arbitrary |
Suction shape
|
Round folding bellows1.5 times |
Operating pressure [bar]
|
-0,95 |
Nominal operating pressure [bar]
|
-0,7 |
Operating medium
|
Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
ambient temperature [°C]
|
-20 to 60 |
Holding force for nominal operating pressure [N]
|
570,00 |
Product weight [g]
|
294 |
Fastening type
|
Via vacuum connection |
vacuum connection
|
G3/8 |
