Construction set up
|

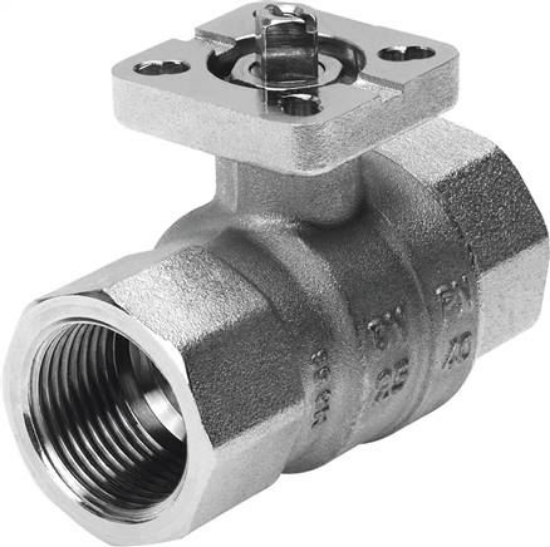

2-way ball valve |
|
Actuation type
|
Mechanical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
Rp1 1/4 |
|
Switching position display
|
Carriage direction = flow direction |
|
Flange drilling screen
|
F04 |
|
Nominal width DN
|
32 |
|
Flow direction
|
Reversible |
|
Nominal pressure fitting
|
40 |
|
Break-out torque at a pressure difference nominal fitting pressure PN [Nm]
|
15,0 |
|
Break-out torque at a pressure difference of 10 bar [Nm]
|
11,9 |
|
Based on standard
|
ISO 5211 |
|
medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
-20 to 150 |
|
Flow Kv [Kubikmeter]
|
121,0 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
brass |
|
Material number housing
|
CW617N |
|
Seals material
|
HNBR |
|
Ball material
|
brass |
|
Material number ball
|
CW617N |
|
Shaft material
|
Brass |
|
Material number shaft
|
CW614N |
|
Product weight [g]
|
1.300 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Weight
|
1.300 g / Pcs |
|
GTIN
|
4052568086794 |
|
Customs duty number
|
84818081 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Ball valves (english) , Data sheet |
