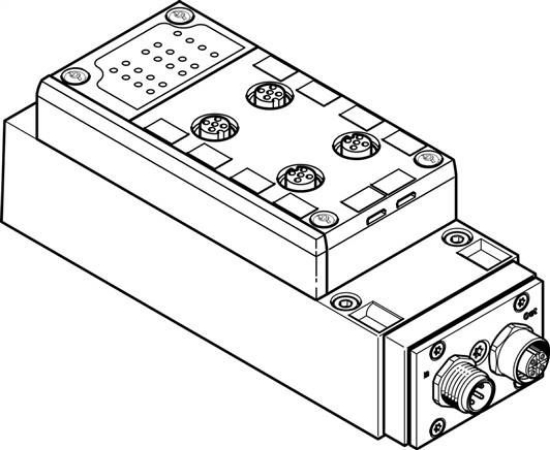

Fieldbus interface
|
Socket M12x1/4-pin |
|
Device specific diagnosis
|
Short circuit / overload inputs |
|
installation position
|
arbitrary |
|
Max. number of valve spaces
|
2 for bistable valves |
|
Max. number of valve coils
|
4 |
|
Reverse polarity protection
|
for all electrical operating voltage connections |
|
Operating element
|
DIL switch |
|
Quantity slaves per device
|
1 |
|
Operating voltage DC AS interface [V]
|
26.5 to 31.6 |
|
Information about load voltage
|
Via load voltage connection (24 V DC) |
|
Load voltage range DC [V]
|
21.6 to 26.4 |
|
Max. number of outputs
|
4 |
|
Max. number of inputs
|
4 |
|
Nominal operating voltage DC AS-Interface [V]
|
26,5 |
|
Nominal load voltage DC [V]
|
24 |
|
Nominal operating voltage DC [V]
|
24 |
|
Residual ripple AS interface
|
<= 20 mVss |
|
Residual ripple load voltage
|
4 Vss |
|
Switch level
|
Signal 0: <= 5 V |
|
Permitted voltage oscillations
|
± 10 % |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Relative humidity
|
0 - 90 % |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
300 |
|
Electrical controls
|
Fieldbus |
|
Switching logic inputs
|
PNP (Positive switching) |
|
electrical connection:
|
over CPX |
|
Addressing area
|
1 ... 31 (0) |
|
Galvanic separation fieldbus interface
|
Opto-coupler |
|
LED display bus specific
|
AS-i: As interface Operation |
|
LED display product specific
|
0 ... 7: Inputs switching status |
|
Product identification
|
ID1=Fh |
|
Seals material
|
NBR |
|
Housing material
|
PA |
|
Material information
|
RoHs compliant |
|
Weight
|
300 g / Pcs |
|
GTIN
|
4052568190286 |
|
Customs duty number
|
85371098 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal VTSA / VTSA-F (english) , Data sheet |
