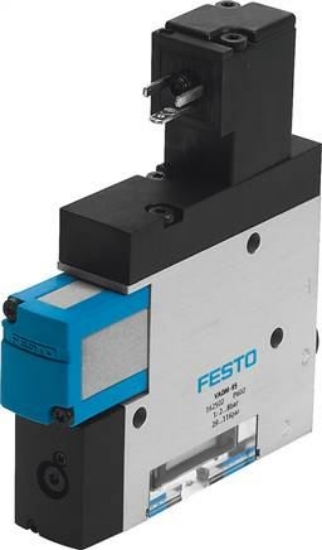

Nominal width laval nozzle [mm]
|
2,00 |
|
Pitch dimension [mm]
|
22 |
|
Construction type silencer type
|
closed |
|
installation position
|
arbitrary |
|
Ejector characteristic
|
High vacuum |
|
Filter porosity [Mikrometer]
|
<= 40 µm |
|
Hand assist actuation
|
tentative |
|
Integrated function
|
Electrical switch on valve |
|
Valve function
|
closed |
|
Operating pressure [bar]
|
2 to 8 |
|
max. vacuum [%]
|
85 |
|
Nominal operating pressure [bar]
|
6 |
|
Venting time for nominal operating pressure [s]
|
0,29 |
|
Operating voltage range DC [V]
|
21.6 to 26.4 |
|
Power-on time
|
100% |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
0 to 60 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
0 to 60 |
|
Permission
|
c UL us - Recognized (OL) |
|
Product weight [g]
|
320 |
|
electrical connection:
|
Plug |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 3
|
Silencer integrated |
|
vacuum connection
|
G3/8 |
|
Material information
|
Copper and PTFE-free |
|
Seals material
|
NBR |
|
Capture nozzle material
|
Nickel-plated brass |
|
Filter material
|
PA |
|
Filter housing material
|
PC |
|
Housing material
|
Aluminium wrought alloy |
|
Silencer material
|
PE |
|
Piston material
|
POM |
|
Jet nozzle material
|
Nickel-plated brass |
|
Weight
|
320 g / Pcs |
|
GTIN
|
4052568131265 |
|
Customs duty number
|
84141089 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VADM/VADMI (english) , Data sheet |
