installation position
|
arbitrary |
|
Power-on time
|
100% |
|
Coil characteristic value
|
110/120 V AC: 50/60 Hz, pull-in power 4.4 VA, holding power 3.3 VA |
|
Permitted voltage oscillations
|
± 10 % |
|
Medium temperature [°C]
|
-20 to 50 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-20 to 50 |
|
electrical connection:
|
Wiring diagram Form B acc. to EN 175301-803 |
|

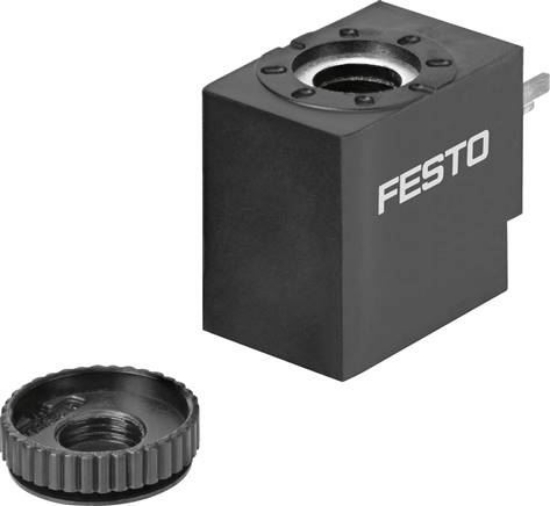

Fastening type
|
With Knurled nut |
|
Material information
|
RoHs compliant |
|
Housing material
|
PA |
|
Winding material
|
Copper |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Maritime classification
|
see Certificate |
|
Solenoid material
|
Copper |
|
Insulation material class
|
H |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Surge voltage strength [kV]
|
2,5 |
|
Degree of contamination
|
3 |
|
Certified awarding point
|
DNVGL-TAA000011J |
|
Weight
|
55 g / Pcs |
|
Customs duty number
|
85059029 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Solenoid coils (english) , Data sheet |
