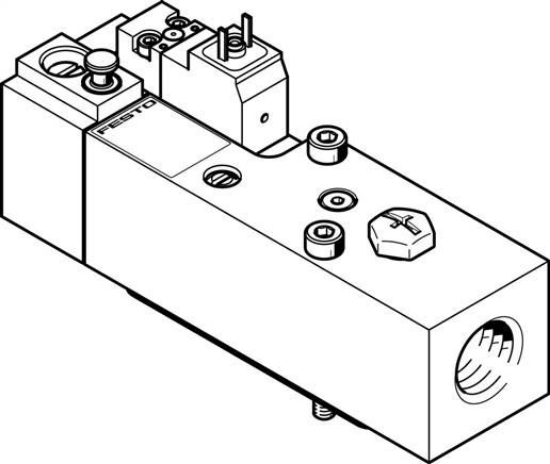

Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Product weight [g]
|
590 |
|
Material information
|
RoHs compliant |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
2.500 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
1.400 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Based on standard
|
ISO 5599-2 |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
Ratcheting |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Mechanical spring |
|
Control type
|
pilot operated |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Valve function
|
Pressure build-up function |
|
Information about force dynamic sampling
|
Switching frequency at least 1/month |
|
Operating pressure [bar]
|
2 to 12 |
|
Pre-setting switching pressure [bar]
|
4 |
|
Normal nominal flow venting [l/min]
|
3.000 |
|
Normal nominal flow vent. [l/min]
|
3.300 |
|
Nominal operating voltage DC [V]
|
24 |
|
Coil characteristic value
|
24 V DC: 2,5 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
electrical connection:
|
Wiring diagram Form C acc. to EN 175301-803 |
|
Fastening type
|
on connection plate |
|
Support air control connection 12/14
|
Connection plate Size 1 to ISO 5599-2 |
|
Pneumatic connection 1
|
Connection plate Size 1 to ISO 5599-2 |
|
Pneumatic connection 2
|
Connection plate Size 1 to ISO 5599-2 |
|
Pneumatic connection 3
|
G1/2 |
|
Pneumatic connection 4
|
Connection plate Size 1 to ISO 5599-2 |
|
Seals material
|
HNBR |
|
Housing material
|
Aluminium wrought alloy |
|
Screws material
|
Steel |
|
Weight
|
590 g / Pcs |
|
GTIN
|
4052568205096 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal VTSA / VTSA-F (english) , Data sheet |
