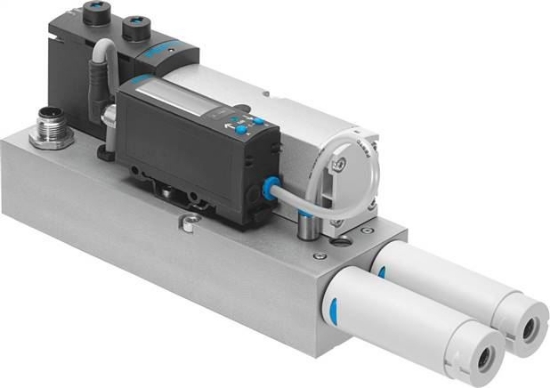

installation position
|
arbitrary |
|
Operating pressure [bar]
|
4 to 8 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
0 to 50 |
|
Product weight [g]
|
1.120,0 |
|
Fastening type
|
on connection plate |
|
Housing material
|
Aluminium wrought alloy |
|
Pneumatic connection 1
|
Connection plate Size 26 mm to ISO 15407-2 |
|
Material information
|
RoHs compliant |
|
Nominal width laval nozzle [mm]
|
2 |
|
Construction type silencer type
|
open |
|
Reverse polarity protection
|
for all electrical connections |
|
Ejector characteristic
|
High vacuum |
|
Hand assist actuation
|
Ratcheting |
|
Integrated function
|
check valves |
|
Construction set up
|
Not modular |
|
Short circuit resistance
|
yes |
|
Measured parameter
|
Relative pressure |
|
Measurement principle
|
Piezoresistive |
|
Switch function
|
Threshold comparator |
|
Valve function
|
5/3 ventilated |
|
Switching element function
|
NO contact |
|
Settings range threshold value [bar]
|
-0,999 |
|
Settings range hysteresis [bar] [bar]
|
-0,9 |
|
Nominal operating pressure [bar]
|
6 |
|
Operating voltage range DC [V]
|
21.6 to 26.4 |
|
Inductive protection circuit
|
adjusted to MZ, MY, ME coils |
|
Empty run current [mA]
|
50 to 150 |
|
Max. output current [mA]
|
50 |
|
Power-on time
|
100% |
|
Voltage drop [V]
|
<= 1,5 V |
|
Coil characteristic value
|
24 V DC: 1,3 W |
|
Overload resistant
|
Available |
|
Medium temperature [°C]
|
0 to 50 |
|
Noise level [Dezibel (?]
|
78 |
|
Pressure measurement range [bar]
|
-1 |
|
Accuracy FS []
|
3 |
|
Pneumatic connection 3
|
Connection plate Size 26 mm to ISO 15407-2 |
|
Seals material
|
NBR |
|
Screws material
|
Steel |
|
Plug housing material
|
nickel-plated |
|
Plug contacts material
|
brass |
|
Window material
|
PA |
|
Button field material
|
TPE-U |
|
Weight
|
1.120,0 g / Pcs |
|
GTIN
|
4052568217860 |
|
Customs duty number
|
84818079 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal VTSA / VTSA-F (english) , Data sheet |
