Application:

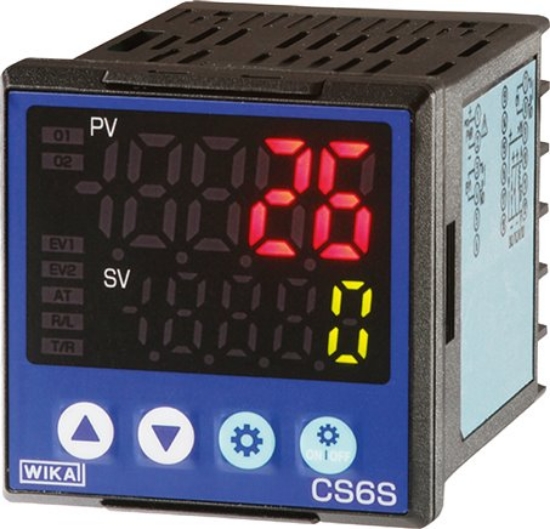

The compact universal controller is used to display, control and monitor temperatures in system and industrial furnace construction, process engineering, plastic engineering, plastic processing, ventilation and air conditioning in general industrial applications.
Materials:
Housing: Polycarbonate with screw bracket for wall thicknesses up to 5 mm
Display:
7-segment LED, 5-digit (actual value: red, target value: green)
Input:
Multi-function input freely definable for resistor thermometer-Pt100, 3-wire, thermocouples types K, J, R, S, E, T, N, PL-II, C (W5), B and DC standard signals (0 - 20 mA, 4 - 20mA, 0 - 1 V, 0 - 5 V, 1 - 5 V, 0 - 10 V). Configuration selectable via terminal assignment and menu-guided programming.
Output:
Control output as relay contact (NO contact) and alarm output for actual value monitoring: max. load 250 V AC (3 A ohmic load, 1 A inductive load cos phi = 0.4)
Control behaviour:
PID (with self-optimisation), PI, PD, P, ON/OFF (adjustable)
Temperature range (environment):
0°C to +50°C
Protection class:
IP 66 for the housing front
