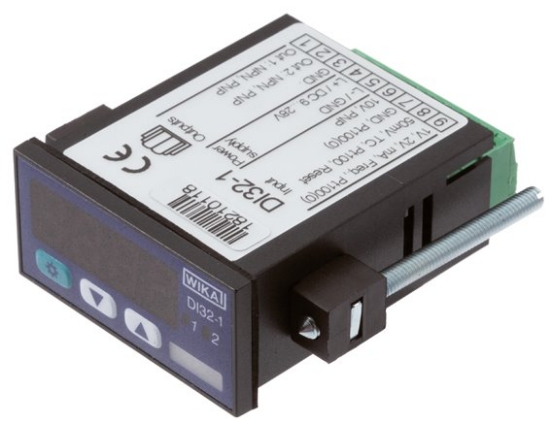

Universal built-in display and controller

Materials:

Housing and window: polycarbonate

Temperature range:

-20°C to +50°C

Protection class:

front side: IP 65

Input signals:

Standard signals (0-20 mA, 4-20 mA, 0-50 mV, 0-1V, 0-2V and 0-10V), resistor thermometers (Pt100 and Pt1000), thermocouples (types K, J, N, T, S, R, B, E and L), frequency / speed (TTL and switch contact)

Outlets:

2 switch contacts (not galvanised isolated, PNP, NPN or push-pull)

Output functions:

2 point, 3 point, 2 point with alarm, min / max alarm together or separated, switch points user defined

Conversion rate:

Standard signal and frequency measurement: approx. 100 measurements/sec., temperature measurement: approx. 1 measurement per second

Display accuracy:

± 0.2 % of the span for voltage signals

Power supply:

9 - 28 V DC

Display:

four-digit, red LED display, character height: 10 mm

Dimensions:

front frame: 24 x 48 mm, installation depth (with plug-in terminal): approx. 67 mm
