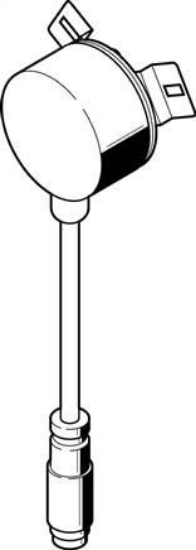

Measurement principle travel measurement system
|
Incremental |
|
size
|
58 mm |
|
Shaft diameter [mm]
|
6 |
|
Construction set up
|
One-sided open hollow shaft |
|
Fastening type
|
With mounting brackets |
|
Fastening type shaft
|
With Compression ring front |
|
Max. speed [Umdrehung ]
|
6.000 |
|
Product weight [g]
|
390 |
|
Operating voltage range DC [V]
|
4.5 to 5.5 |
|
Nominal operating voltage DC [V]
|
5 |
|
Max. power input [mA]
|
40 |
|
Max. impulse frequency [kHz]
|
300 |
|
Stroke
|
2500 |
|
Signal shape
|
Rectangular pulse, sampling ratio 1:1 |
|
Encoder output interface, properties
|
RS422 |
|
ambient temperature [°C]
|
-10 to 70 |
|
Bearing temperature [°C]
|
-25 to 85 |
|
Protection category
|
IP65 |
|
Information about protection category
|
IP64 for shaft input |
|
Protection class
|
III |
|
Degree of contamination
|
2 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Permission
|
c UL us - Listed (OL) |
|
Connection outlet direction
|
radial |
|
Encoder interface, connection type
|
Cable with plug |
|
Encoder interface, cable output
|
straight |
|
Encoder interface, connection technology
|
M16x0,75 |
|
Encoder interface, number of pins / wires
|
8 |
|
Cable length [MTR]
|
2 |
|
Cable diameter [mm]
|
6 |
|
Bending radius, permanent cable placement [mm]
|
>= 40 mm |
|
Bending radius, moving cable placement [mm]
|
>= 100 mm |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#FFFFFF |
|
Housing material
|
Aluminium wrought alloy |
|
Plug housing material
|
brass |
|
Material information
|
LABS containing materials included |
|
Weight
|
390 g / Pcs |
|
Customs duty number
|
90292038 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet , Group data sheet: CHB-C-N |
