Materials:
Body: plastic, threaded part: brass, screw: Stainless steel
Connecting line:
PUR cable
Protection class:
IP 67
Temperature range:
-20°C to +70°C
Note:

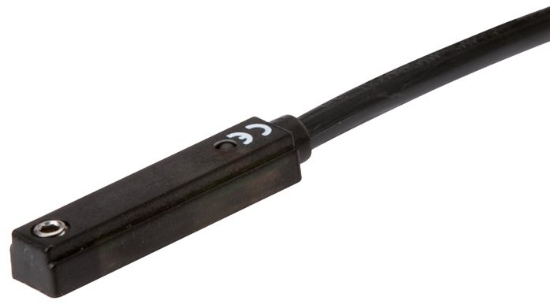

The proximity switch with light emitting diode is used for the contactless position indicator of cylinders with magnetic pistons. It is mounted by pushing it in the T-groove of the cylinder and locking it using the threaded rod.
Suitable:
For cylinders with
T groove (5 mm)
Advantages:
•no mounting material required,
•one switch fits many products of most European brands (e.g. Festo).
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Version
|
3-wire reed sensor |
|
Operating voltage
|
10 - 30 V AC / DC |
|
Switching
|
NO contact |
|
Max. switching current / power output
|
500 mA / 10 W |
|
Connecting line
|
0.2 m, 3 x 0.14 mm² with M 8 connector (3 pin) |
|
Weight
|
21 g / Pcs |
|
GTIN
|
4050571816940 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Document
|
Catalogue page Atlas 9, Documentation, Data sheet |
