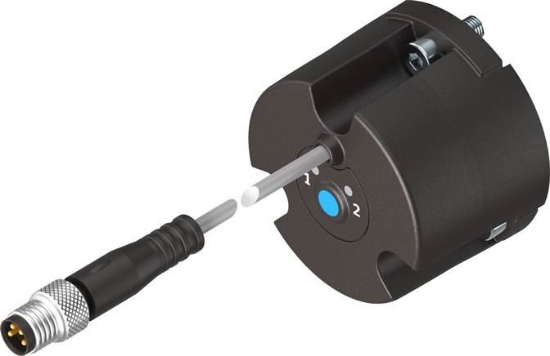

Design
|
round |
|
Based on standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Special features
|
Oil resistant |
|
Material information
|
halogen free |
|
Measured parameter
|
Angle of rotation |
|
Measurement principle
|
Hall magnetic |
|
Recording range [deg]
|
> 270 deg |
|
ambient temperature [°C]
|
-20 to 70 |
|
Sampling interval type [ms]
|
3 |
|
Control output
|
2 x PNP or 2 x NPN switchable |
|
Switching element function
|
Opener/closer switchable |
|
Reproducibility switch point
|
<= 1 ° |
|
Switch on time [ms]
|
< 4 ms |
|
Switch off time [ms]
|
< 4 ms |
|
Max. switching frequency [hz]
|
125 |
|
Max. output current [mA]
|
50 |
|
Max. switching capacity DC [W]
|
1,5 |
|
Voltage drop [V]
|
< 1 V |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Rated operating voltage DC [V]
|
24 |
|
Operating voltage range DC [V]
|
10 to 30 |
|
residual ripple
|
10 % |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Cable with plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Connection outlet direction
|
along |
|
Plug contacts material
|
Copper allow |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable length [MTR]
|
0,3 |
|
Line properties
|
Cable track+robot |
|
Cable shield colour
|
#C6C6C6 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Fastening type
|
Permanently screwed |
|
installation position
|
arbitrary |
|
Product weight [g]
|
42 |
|
Housing material
|
PA reinforced |
|
Locking nut material
|
Nickel-plated brass |
|
Foil material
|
Polyester |
|
Switching status indicator
|
LED yellow |
|
Setting options
|
Button |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
Protection class
|
III |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
42 g / Pcs |
|
Customs duty number
|
85365019 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SRBS (english) , Data sheet |
