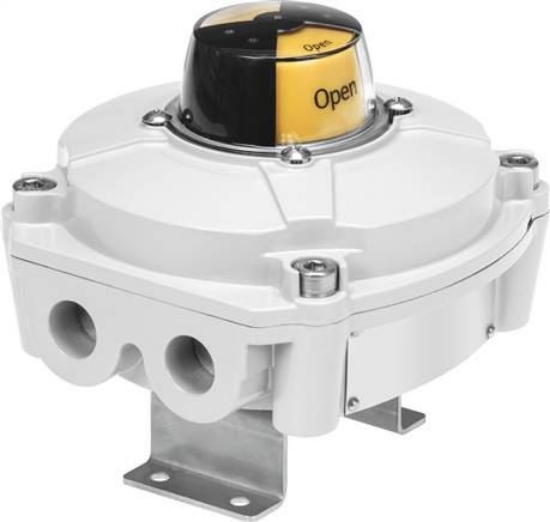

SRBE-CA3-YR90-R-2A-1W-C2N12-C1 (3998923) جعبه سنسور فستو

کد سفارش تولید کننده: 3998923
مشخصات
عنوان ویژگی مقدار ویژگی
Design Angular
Based on standard EN 60947-5-2
CE certificate (see declaration of conformity) to EU low voltage directive
ATEX gas category II 2G
Ex ignition protection type gas AEx d IIB T5 Gb
ATEX dust category II 2D
Ex ignition protection type dust AEx tb IIIC T108°C Db
Ex protection approval outside of the EU Class I, Div. 1 (CA)
Ex ambient temperature -20°C <= Ta <= +60°C
Certified awarding point CSA 263311
Material information LABS containing materials included
Safety Integrity Level (SIL) SIL 2
Measurement principle Reed magnetic
ambient temperature [°C] -20 to 60
Control output Contact
Switching element function Change switch, One pin
Max. output current AC [mA] 416
Max. output current DC [mA] 3.000
Operating voltage range AC [V] 0 bis 220
Operating voltage range DC [V] 0 to 30
electrical connection: 10 pin
Lockable conductor nominal cross-section [mm²] 0.25 to 2.5
Cable screwing NPT1/2
Fastening type on flange according to ISO 5211
installation position arbitrary
Product weight [g] 1.700
Housing colour #EDEDED
Housing material Aluminium die casting
Seals material NBR
Shaft material High-alloyed stainless steels
Screws material High-alloyed stainless steels
Mounting bracket material High-alloyed stainless steels
Pointer material PC
Circlip material High-alloyed stainless steels
Washer material High-alloyed stainless steels
position indicator yellow / red
Settings range angle recording [deg] 0 to 90
Bearing temperature [°C] -20 to 60
Protection category IP67
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Oscillation strength Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Degree of contamination 3
Weight 1.700 g / Pcs
Customs duty number 85371098
Manufacturer Festo
Document Group data sheet: SRBE (english) Data sheet
