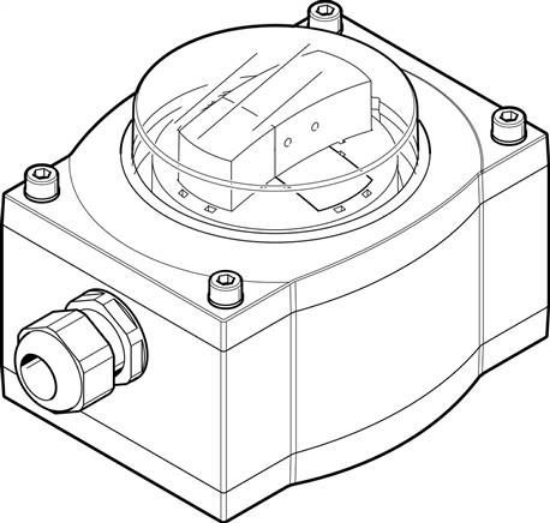

Design
|
Angular |
|
Based on standard
|
VDI/VDE 3845 (NAMUR) |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
Angle of rotation |
|
Measurement principle
|
Hall magnetic |
|
ambient temperature [°C]
|
-20 to 80 |
|
Analogue output
|
4 - 20 mA |
|
Repeatability analogue output in ± ° [deg]
|
1 |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Empty run current [mA]
|
12 to 20 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
9 pin |
|
Lockable conductor nominal cross-section [mm²]
|
2,5 |
|
Cable screwing
|
M20 |
|
Permitted cable diameter [mm]
|
5 to 13 |
|
Max. line length
|
30 m |
|
installation position
|
arbitrary |
|
Product weight [g]
|
1.000 |
|
Housing material
|
Aluminium wrought alloy |
|
position indicator
|
Red / green |
|
Setting options
|
Teach-in |
|
Settings range angle recording [deg]
|
0 to 270 |
|
Protection category
|
IP65 |
|
Insulation voltage [V]
|
50 |
|
Surge voltage strength [kV]
|
0,8 |
|
Protection class
|
III |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
Degree of contamination
|
3 |
|
Weight
|
1.000 g / Pcs |
|
GTIN
|
4052568216177 |
|
Customs duty number
|
85371098 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SRAP (english) , Data sheet |
