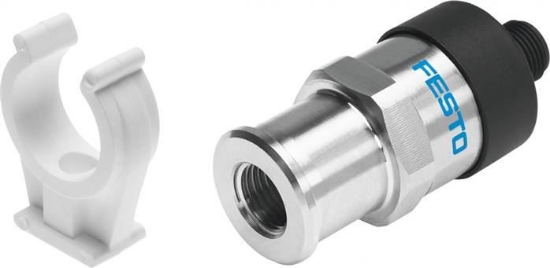

خروجی آنالوگ: mA 4-20 (جریان)، 0-100 بار
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
LABS containing materials included |
|
Measured parameter
|
Relative pressure |
|
Measurement process
|
Metal thin film pressure sensor |
|
Pressure measurement range starting value [bar]
|
0 |
|
Pressure measurement range end value [bar]
|
100 |
|
Overload range [bar]
|
200 |
|
Operating medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
0 to 80 |
|
ambient temperature [°C]
|
0 to 80 |
|
Accuracy FS []
|
1 |
|
Repeatability in ± %FS []
|
0,1 |
|
Analogue output
|
4 - 20 mA |
|
Linearity error in ± %FS []
|
0,5 |
|
Short circuit resistance
|
yes |
|
Operating voltage range DC [V]
|
8 to 30 |
|
Reverse polarity protection
|
for operating voltage |
|
electrical connection:
|
M12x1 |
|
Plug housing material
|
PA |
|
Fastening type
|
With female thread |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
G1/4 |
|
Product weight [g]
|
80 |
|
Housing material
|
PA |
|
From medium contacting materials
|
High-alloyed stainless steels |
|
Protection category
|
IP67 |
|
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
|
Weight
|
80 g / Pcs |
|
GTIN
|
4052568256036 |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SPTW (english) , Data sheet |
