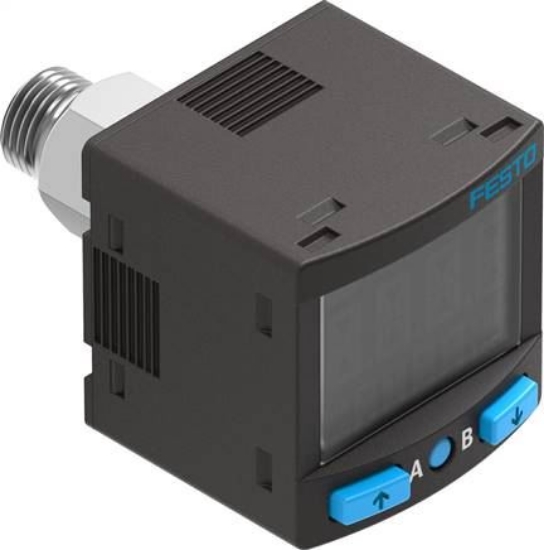

خروجی کنترل: قابل تنظیم ، فشار: 1- تا 1 بار
مشخصات
| عنوان ویژگی |
مقدار ویژگی |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
KC-mark
|
KC-EMV |
|
Certified awarding point
|
UL E322346 |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
Relative pressure |
|
Measurement process
|
Piezoresistive pressure sensor |
|
Pressure measurement range starting value [bar]
|
-1 |
|
Pressure measurement range end value [bar]
|
1 |
|
Overload range [bar]
|
5 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Accuracy FS []
|
1,5 |
|
Repeatability in ± %FS []
|
0,3 |
|
Temperature coefficient in ± %FS/K []
|
0,05 |
|
Control output
|
2 x PNP or 2 x NPN switchable |
|
Switch function
|
Window comparator |
|
Switching element function
|
Opener/closer switchable |
|
Max. output current [mA]
|
100 |
|
Short circuit resistance
|
yes |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
4 pin |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, connection technology
|
Wiring diagram L1J |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Fastening type
|
Front panel integration |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
Male thread G1/8 |
|
Product weight [g]
|
46 |
|
Housing material
|
PA reinforced |
|
Display type
|
Illuminating LCD |
|
Presentable unit(s)
|
MPa |
|
Setting options
|
Teach-in |
|
Tamper-proof fuse
|
PIN code |
|
Settings range threshold value [%]
|
0 to 100 |
|
Settings range hysteresis [%]
|
0 to 90 |
|
Protection category
|
IP40 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
46 g / Pcs |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SPAN (english) , Data sheet |
