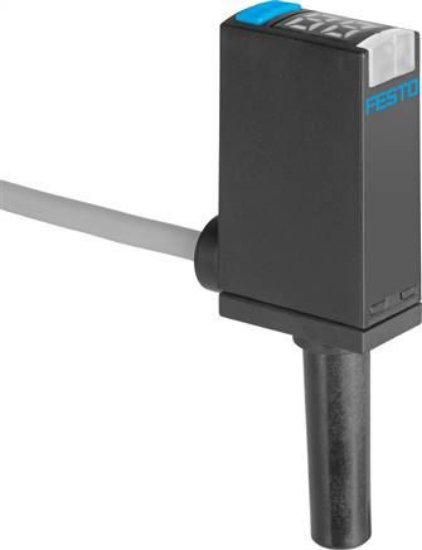

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
Relative pressure |
|
Measurement process
|
Piezoresistive pressure sensor with display |
|
Pressure measurement range starting value [bar]
|
0 |
|
Pressure measurement range end value [bar]
|
10 |
|
Overload range [bar]
|
15 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Resolution analogue-digital converter [Bit]
|
10 |
|
Accuracy FS []
|
1,5 |
|
Repeatability in ± %FS []
|
0,3 |
|
Temperature coefficient in ± %FS/K []
|
0,05 |
|
Control output
|
PNP/NPN switchable |
|
Switch function
|
Freely programmable |
|
Switching element function
|
NC contact |
|
Max. output current [mA]
|
100 |
|
display range starting value []
|
0 |
|
Display range end value []
|
99 |
|
Short circuit resistance
|
yes |
|
Report
|
IO-Link |
|
IO-Link, report
|
Device V 1.1 |
|
IO-Link, profile
|
Smart sensor profile |
|
IO-Link, function classes
|
Teach channel |
|
IO-Link, communication mode
|
COM2 (38.4 kBaud) |
|
IO-Link, SIO mode support
|
yes |
|
IO-Link, port type
|
A |
|
IO-Link, process data width OUT
|
0 Bytes |
|
IO-Link, process data width IN
|
2 Bytes |
|
IO-Link, process data contents IN
|
14 bit PDV (pressure measurement) |
|
IO-Link, minimum cycle time
|
3 ms |
|
IO-Link, data memory needed [Byte]
|
500 |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
3-wire |
|
Cable length [MTR]
|
2,5 |
|
Fastening type
|
Pluggable |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
Plug sleeve QS-4 |
|
Product weight [g]
|
40 |
|
Housing material
|
PA reinforced |
|
Gasket material
|
NBR |
|
Display type
|
LED display |
|
Presentable unit(s)
|
%FS |
|
Switching status indicator
|
LED yellow |
|
Setting options
|
IO-Link |
|
Tamper-proof fuse
|
PIN code |
|
Settings range threshold value [%]
|
1 to 98 |
|
Protection category
|
IP40 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
40 g / Pcs |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SPAE (english) , Data sheet |
