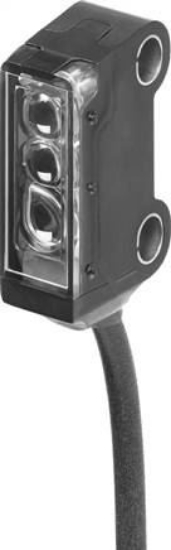

Design
|
Block structure |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
Certified awarding point
|
UL E232949 |
|
Material information
|
LABS containing materials included |
|
Measurement principle
|
Optoelectronic |
|
Detektionsverfahren
|
Diffuse-reflective photoelectric sensor with hidden background |
|
Light type
|
LED |
|
Max. light spot
|
2 mm bei Tastweite 30 mm |
|
Minimum object diameter [mm]
|
2,0 |
|
Range [mm]
|
1 bis 30 |
|
ambient temperature [°C]
|
-25 to 60 |
|
Max. Schwarz-Weiß-Differenz [%]
|
7 |
|
Reference material
|
Standardweiß 90%, 100x100 mm |
|
Control output
|
Gegentakt |
|
Switching element function
|
NPN dunkelschaltend |
|
Hysteresis [mm]
|
0,3 |
|
Max. switching frequency [hz]
|
800 |
|
Max. output current [mA]
|
50 |
|
Voltage drop [V]
|
0 to 1.5 |
|
Short circuit resistance
|
Cycling |
|
Operating voltage range DC [V]
|
10 to 30 |
|
residual ripple
|
10 % |
|
Empty run current [mA]
|
10 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Cable with plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
3 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Plug contacts material
|
brass, Gold plated |
|
Cable length [MTR]
|
0,15 |
|
Line properties
|
Standard |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Fastening type
|
With throughway bores |
|
Torque [Nm]
|
0,5 |
|
installation position
|
arbitrary |
|
Product weight [g]
|
10 |
|
Housing material
|
ABS |
|
Operation-readiness display
|
LED green |
|
Switching status indicator
|
LED yellow |
|
Protection category
|
IP65 |
|
Insulation voltage [V]
|
500 |
|
Surge voltage strength [kV]
|
1 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Degree of contamination
|
3 |
|
Weight
|
10 g / Pcs |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SOOD/SOOE (english) , Data sheet |
