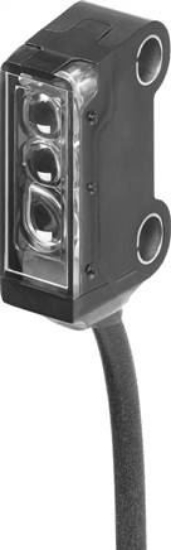

SOOD-BS-L-PN-80 (8075660) سنسور پخش نور فستو

کد سفارش تولید کننده: 8075660
مشخصات
عنوان ویژگی مقدار ویژگی
Design Block structure
Complies to standard EN 60947-5-2
Permission RCM mark
CE certificate (see declaration of conformity) acc. to EU-EMV Directive
Certified awarding point UL E232949
Material information LABS containing materials included
Measurement principle Optoelectronic
Detektionsverfahren Diffuse-reflective photoelectric sensor with hidden background
Light type Laser
Max. light spot 2 mm bei Tastweite 80 mm
Minimum object diameter [mm] 2,0
Range [mm] 20 to 80
ambient temperature [°C] -20 to 60
Max. Schwarz-Weiß-Differenz [%] 15
Reference material Standardweiß 90%, 100x100 mm
Control output Gegentakt
Switching element function NPN dunkelschaltend
Hysteresis [mm] 2,4
Max. switching frequency [hz] 2.000
Max. output current [mA] 50
Voltage drop [V] 0 to 1.5
Short circuit resistance Cycling
Operating voltage range DC [V] 10 to 30
residual ripple 10 %
Empty run current [mA] 10
Reverse polarity protection for all electrical connections
Electrical connection 1, connection type Cable with plug
Electrical connection 1, connection technology M8x1, A coded to EN 61076-2-104
Electrical connection 1, number of pins / wires 3
Electrical connection 1, fastening type Screw lock
Plug contacts material brass, Gold plated
Cable length [MTR] 0,15
Line properties Standard
Cable sleeve material TPE-U(PUR)
Fastening type With throughway bores
Torque [Nm] 0,5
installation position arbitrary
Product weight [g] 10
Housing material ABS
Operation-readiness display LED green
Switching status indicator LED yellow
Protection category IP65
Insulation voltage [V] 500
Surge voltage strength [kV] 1
Corrosion resistant class KBK 1 - low corrosion stress
Degree of contamination 3
Laser protection class 1
Weight 10 g / Pcs
Customs duty number 85365019
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: SOOD/SOOE (english) Data sheet
