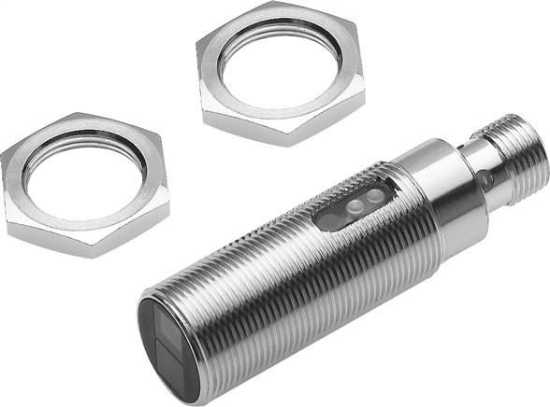

Design
|
round |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Optoelectronic |
|
Measurement process
|
retroreflective photoelectric sensor |
|
Light type
|
Red polarised |
|
Range [mm]
|
2000 |
|
ambient temperature [°C]
|
-25 to 55 |
|
Control output
|
PNP |
|
Switching element function
|
Dark switching |
|
Max. switching frequency [hz]
|
1.000 |
|
Max. output current [mA]
|
200 |
|
Voltage drop [V]
|
<= 2 V |
|
Short circuit resistance
|
Cycling |
|
Operating voltage range DC [V]
|
10 to 36 |
|
residual ripple
|
20 % |
|
Empty run current [mA]
|
15 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M12x1 |
|
size
|
M18x1 |
|
Fastening type
|
With locking nut |
|
Torque [Nm]
|
20 |
|
Product weight [g]
|
53 |
|
Housing material
|
brass |
|
Locking nut material
|
brass |
|
Switching status indicator
|
LED yellow |
|
Functional reserve display
|
LED green |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 55 |
|
Protection category
|
IP65 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Weight
|
53 g / Pcs |
|
GTIN
|
4052568088712 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Sensors SOE (english) , Data sheet |
