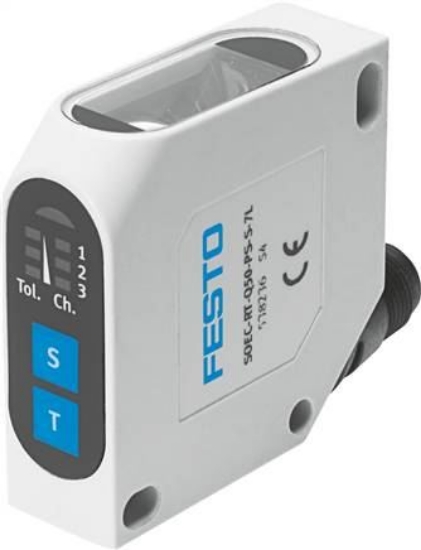

Design
|
Block structure |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Optoelectronic |
|
Measurement process
|
Colour sensor |
|
Light type
|
|
|
Max. light spot
|
Ø 4 mm at sampling width 22 mm |
|
Range [mm]
|
12 to 32 |
|
ambient temperature [°C]
|
-10 to 55 |
|
Control output
|
PNP |
|
Switching element function
|
Bright switching |
|
Max. switching frequency [hz]
|
500 |
|
Max. output current [mA]
|
100 |
|
Voltage drop [V]
|
<= 2,4 V |
|
Short circuit resistance
|
Cycling |
|
Operating voltage range DC [V]
|
10 to 30 |
|
residual ripple
|
10 % |
|
Empty run current [mA]
|
40 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M12x1 |
|
size
|
50x50x17 mm |
|
Fastening type
|
With throughway bores |
|
Product weight [g]
|
38 |
|
Housing material
|
ABS |
|
Operation-readiness display
|
LED green |
|
Switching status indicator
|
LED |
|
Setting options
|
Teach-in |
|
Settings range lower limit [mm]
|
12 |
|
Settings range uppper limit [mm]
|
32 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 55 |
|
Protection category
|
IP67 |
|
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
|
Weight
|
38 g / Pcs |
|
GTIN
|
4052568175399 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet , Group data sheet: Sensoren SOE |
