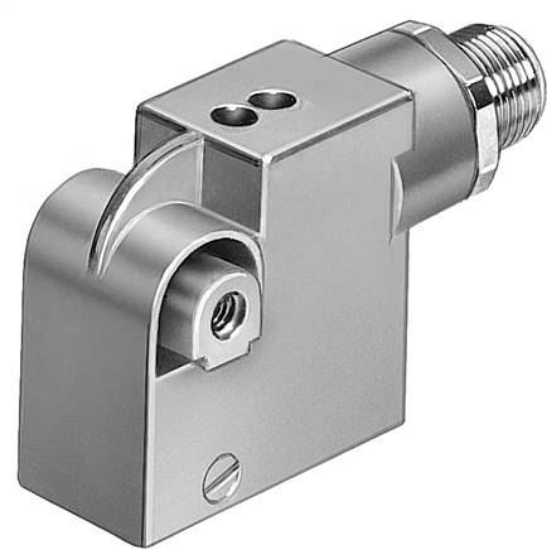

Design
|
Block structure |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measurement principle
|
Inductive magnet |
|
ambient temperature [°C]
|
-25 to 70 |
|
Control output
|
PNP |
|
Switching element function
|
NO contact |
|
Reproducibility of the switching value
|
± 0,1 mm |
|
Switch on time [ms]
|
35 |
|
Switch off time [ms]
|
20 |
|
Max. output current [mA]
|
200 |
|
Max. switching capacity DC [W]
|
6 |
|
Voltage drop [V]
|
3 |
|
Residual current [mA]
|
0,01 |
|
Short circuit resistance
|
Cycling |
|
Overload resistant
|
Available |
|
Operating voltage range DC [V]
|
10 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M12x1 |
|
Connection outlet direction
|
along |
|
Fastening type
|
With Accessories |
|
Product weight [g]
|
70 |
|
Housing material
|
PA |
|
Switching status indicator
|
LED yellow |
|
Protection category
|
IP67 |
|
Special features
|
Welding field immune |
|
Measured parameter
|
Position |
|
Max. tightening torque plug [Nm]
|
0,3 |
|
Torque [Nm]
|
< 0,3 Nm |
|
Operation-readiness display
|
LED green |
|
Noise immunity to magnetic fields
|
50 - 60 Hz |
|
Weight
|
70 g / Pcs |
|
GTIN
|
4052568113599 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMX-1 (english) , Data sheet |
