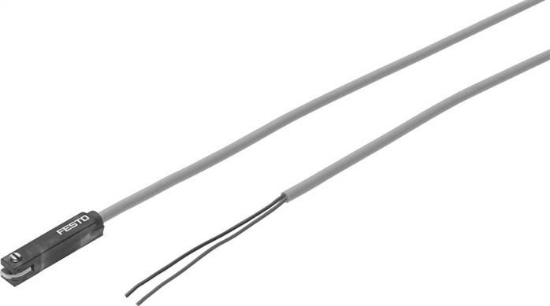

Design
|
For T-slot |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measurement principle
|
Reed magnetic |
|
ambient temperature [°C]
|
-10 to 60 |
|
Control output
|
Bipolar contact |
|
Switching element function
|
NO contact |
|
Max. output current [mA]
|
100 |
|
Max. switching capacity AC [Voltampere]
|
3,0 |
|
Max. switching capacity DC [W]
|
3,00 |
|
Short circuit resistance
|
no |
|
Overload resistant
|
Not available |
|
Operating voltage range AC [V]
|
10 to 30 |
|
Operating voltage range DC [V]
|
10 to 30 |
|
Connection outlet direction
|
along |
|
Cable length [MTR]
|
1,0 |
|
Cable sleeve material
|
PVC |
|
Fastening type
|
Insertable from above into the slot |
|
Product weight [g]
|
14,8 |
|
Housing material
|
PA |
|
Switching status indicator
|
LED yellow |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 60 |
|
Protection category
|
IP67 |
|
Electrical connection 1, connection type
|
cable |
|
Electrical connection 1, connection technology
|
Open end |
|
Electrical connection 1, number of pins / wires
|
2 |
|
Test conditions line
|
Test conditions on request |
|
Line properties
|
Standard |
|
Weight
|
14,8 g / Pcs |
|
GTIN
|
4052568099213 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-8 (english) , Data sheet |
