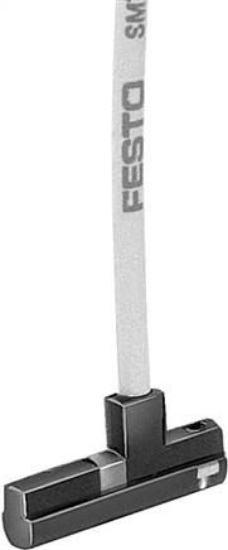

Design
|
For round nut |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
Copper and PTFE-free |
|
Measurement principle
|
Reed magnetic |
|
ambient temperature [°C]
|
-20 to 70 |
|
Control output
|
Bipolar contact |
|
Switching element function
|
NO contact |
|
Reproducibility of the switching value
|
± 0,1 mm |
|
Switch on time [ms]
|
<= 0,6 ms |
|
Switch off time [ms]
|
<= 0,05 ms |
|
Max. switching frequency [hz]
|
500 |
|
Max. output current [mA]
|
100 |
|
Max. switching capacity DC [W]
|
1 |
|
Voltage drop [V]
|
0 |
|
Short circuit resistance
|
no |
|
Overload resistant
|
Not available |
|
Operating voltage range AC [V]
|
12 to 27 |
|
Operating voltage range DC [V]
|
12 to 27 |
|
Reverse polarity protection
|
no |
|
electrical connection:
|
3-wire |
|
Connection outlet direction
|
horizontal |
|
Cable length [MTR]
|
2,5 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Fastening type
|
clamped in round slot |
|
Torque [Nm]
|
0,1 |
|
Product weight [g]
|
20 |
|
Housing material
|
PPS |
|
Switching status indicator
|
LED yellow |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Protection category
|
IP65 |
|
Insulation voltage [V]
|
50 |
|
Surge voltage strength [kV]
|
0,8 |
|
Degree of contamination
|
3 |
|
Weight
|
20 g / Pcs |
|
GTIN
|
4052568074616 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-10 (english) , Data sheet |
